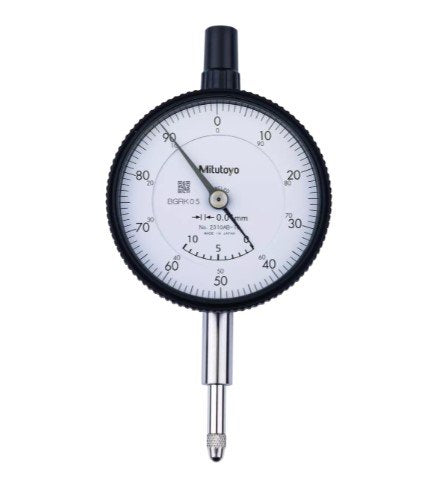

Mitutoyo 2310AB-10 | Dial Gauge | Flat Back | ISO Type | Series 2 | Jewelled Bearing | Graduation 0.01 mm | Range 10 mm
The Mitutoyo 2310AB-10 Dial Gauge is a high-precision measuring instrument featuring a 10 mm range and 0.01 mm graduation for accurate readings. Its flat back design allows for flexible and flush mounting in various setups, ensuring ease of use. Equipped with jewelled bearings, it delivers smooth and reliable performance for long-term use. As part of Mitutoyo’s Series 2, it is built for durability and consistent industrial performance. ISO type compliant, this dial gauge is ideal for professional inspection, alignment, and other precision measurement tasks.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | +/-0.0 - 100.0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 15 µm |
Range | 10 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 137 g |
- Measurement Range: 0 – 10 mm
- Graduation: 0.01 mm for precise and accurate readings
- Back Type: Flat back for flush and versatile mounting
- Bearing Type: Jewelled bearings for smooth movement and durability
- Series: Part of Mitutoyo’s trusted and durable Series 2
- Compliance: ISO type, meeting international precision standards
