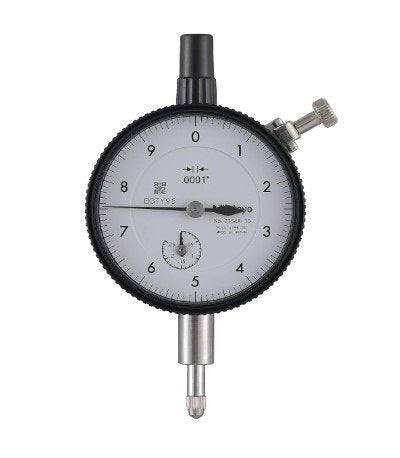

Mitutoyo 2356A-10 | Lug Back Dial Gauge | 0.25 in, 0.0001 in, ANSI/AGD
Part Number : 2356A-10
With 0.25 in of plunger travel and 0.0001 in graduations, the 2356A-10 from Mitutoyo is a lug back dial gauge. Built to ANSI/AGD and part of Series 2, it is used for linear measurement and inspection, and its lug back provides secure mounting.
- Dial reading 0.0-10.0; measuring force 0.4 - 2 N
- Hysteresis 0.0001 in and repeatability ±0.00003 in
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2356A-10
- Jewelled bearing (2356A-10)
- Carbide-tipped contact point; weight 163 g
- Inch reading on an analogue dial
Free UAE shipping available
For pricing, please contact our experts.
