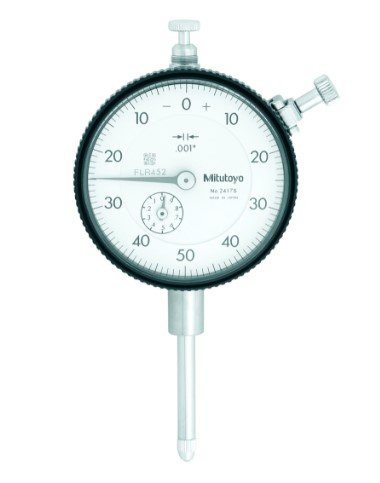

Mitutoyo 2417AB | Flat Back Dial Gauge | 1 in, 0.001 in, ANSI/AGD
Part Number : 2417AB
The Mitutoyo 2417AB is a flat back dial gauge with a 1 in measuring range and 0.001 in graduation. Built to ANSI/AGD and part of Series 2, it is used for linear measurement and inspection, and it has a flat back (2417AB).
- 0.0-50.0-0.0 dial with 0.4 - 1.8 N measuring force
- 2417AB repeatability: ±0.0002 in; hysteresis: 0.0002 in
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2417AB
- Jewelled bearing and sealed frame against dust, oil and moisture (2417AB)
- 2417AB weight 139 g, carbide-tipped contact
- 2417AB: scratch-resistant crystal
Free UAE shipping available
For pricing, please contact our experts.
