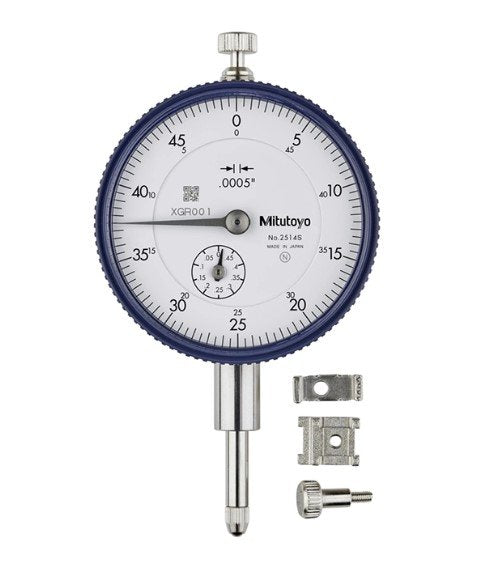

Mitutoyo 2514A | Dial Indicator | Lug Back | Series 2 | Graduation 0.0005 inch | Accuracy ± 0.0005 inch | Range 0.5 inch
The Mitutoyo 2514A Dial Indicator features a lug-back design for easy and secure mounting. Part of the Series 2, it offers a graduation of 0.0005 inch, providing fine precision. With an accuracy of ±0.0005 inch, it ensures reliable and consistent measurements. The indicator has a measuring range of 0.5 inches, making it suitable for moderate measurement tasks. Its durable construction is designed to withstand the demands of industrial environments. The clear dial face allows for easy reading and quick interpretation of measurements.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | +/-0 - 50 |
Graduation | 0.0005 Inch |
Hysteresis | 0.00016 Inch |
Inch-Metric | Inch |
Measuring Force | 0.4 - 1.8 N |
Range | 0.5 Inch |
Repeatability | +/-0.0001 Inch |
Series | 2 |
Stem Dia | 9.52 mm or 0.375Inch |
Thread type | 4-48UNF |
Type | Dial Indicator |
Weight | 164 g |
- Lug Back Design: Allows for easy mounting and stable positioning.
- Graduation of 0.0005 inch: Provides fine precision for highly accurate measurements.
- Accuracy of ±0.0005 inch: Ensures reliable and consistent performance in precise applications.
- Range of 0.5 inch: Suitable for measuring moderate deviations within a 0.5-inch range.
- Durable Construction: Built to withstand industrial use and maintain long-term performance.
- Clear Dial Face: Ensures easy reading and quick interpretation of measurements.
