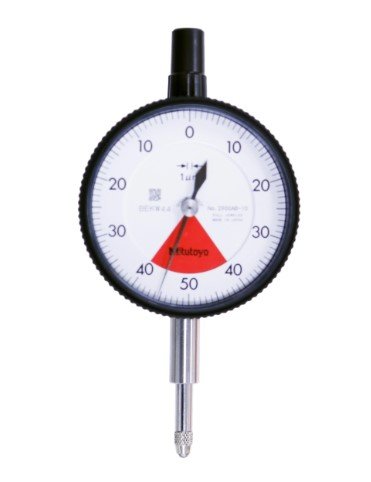

Mitutoyo 2900A-10 | Dial Gauge | Lug Back | ISO Type | Series 2 | One Revolution | Jewelled Bearing | Graduation 0.001mm | Range 0.08 mm
The Mitutoyo 2900A-10 is a high-precision Series 2 dial indicator featuring a lug-back design for secure mounting. It offers a 0–0.08 mm measuring range with 0.001 mm graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by eliminating the need to count multiple rotations. Designed to meet ISO/JIS standards, it ensures compatibility with global equipment. The shockproof construction enhances durability in demanding environments. This model is ideal for applications requiring precise linear measurements and reliable performance.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 40.0-0.0-40.0 |
Graduation | 0.001 mm |
Hysteresis | 2 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Repeatability | 1.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Stroke | Plunger: 4 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 149 g |
- Precision Measurement: 0.001mm graduations with a 0.08mm range for highly accurate measurements.
- One-Revolution Dial: Provides the full scale measurement in a single rotation, preventing reading errors.
- Lug Back Design: Securely mounts the gauge to test fixtures and stands for stable operation.
- Jewelled Bearing: Ensures smooth operation and long-lasting durability with minimal friction.
- ISO/JIS Compliance: Meets international standards, ensuring compatibility with global measuring systems.
- Shockproof Build: Designed for use in harsh environments, providing reliable performance over time.
