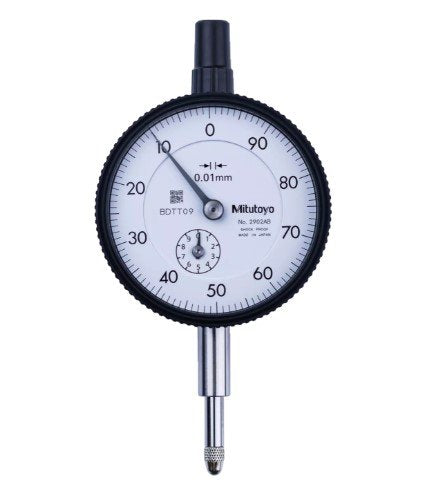

Mitutoyo 2902A | Dial Gauge | Lug Back | ISO Type | Series 2 | Reverse Dial Face | Graduation 0.01 mm | Range 10 mm
The Mitutoyo 2902A Dial Gauge is a precision instrument designed for accurate measurements, featuring a 10 mm range and 0.01 mm graduation. It includes a lug back for secure mounting, ensuring stability during use. The gauge features a reverse dial face, making it ideal for measurements in specific orientations. As part of Mitutoyo’s Series 2, it offers long-lasting durability and consistent performance. It is ISO type compliant, adhering to international standards for precision. This dial gauge is perfect for industrial applications where high accuracy is essential.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 100.0 - 0.0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 13 µm |
Range | 10 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 144 g |
- Measurement Range: 0 – 10 mm
- Graduation: 0.01 mm for precise and accurate readings
- Back Type: Lug back for secure and stable mounting
- Dial Face: Reverse dial face, ideal for specific measurement orientations
- Series: Part of Mitutoyo’s reliable and durable Series 2
- Compliance: ISO type, ensuring adherence to international precision standards
