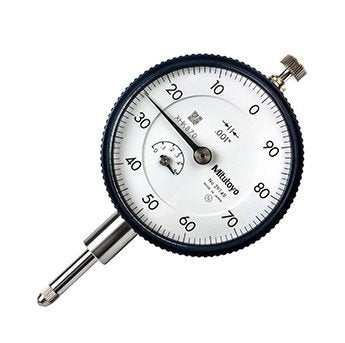

Mitutoyo 2914S | Dial Indicator | Series 2 | Graduation 0.001 inch | Accuracy ± 0.001 inch | Range 0 to 0.5 inch
The Mitutoyo 2914S Dial Indicator, Series 2, offers precise measurements with a graduation of 0.001 inch. It features an accuracy of ± 0.001 inch, ensuring high reliability in various applications. The indicator has a measurement range of 0 to 0.5 inch, suitable for both small-scale and precise measurement tasks. Its durable design provides consistent performance even in challenging environments. Ideal for machining, assembly, and quality control processes. The easy-to-read dial face enhances user convenience for quick and accurate readings.
- Specifications
- Features
- Downloads
| Accuracy | +/- 0.001 inch |
| Contact point | #4-48 UNF Thread |
| Dial Reading | 100 to 0 |
| Graduation | 0 .001 inch |
| Measuring Force | 0.4-1.8N |
| Range | 0-0.500 inch |
| Series | 2 |
| Shank | 3/8 inch |
| Type | Dial Indicator |
- Outer Frame: 57mm diameter, sturdy design for reliable performance.
- Standard Components: Includes limit pins and outer frame clamp.
- Clamp & Lifting Lever: Can be mounted on either side (right or left) and easily installed or removed without tools.
- Water & Oil Protection: Secure bond between the outer frame and crystal, with an O-ring to prevent ingress.
- Durable Spindle: High-strength, quench-hardened stainless steel stem spindle for long-lasting use.
- Carbide Contact Point: Provides superior durability.
- Wear-Resistant Gear: Grand gear made of stainless steel resistant to wear and deformation.
- Scratch & Chemical Resistance: Hard-coated crystal surface for enhanced protection.
