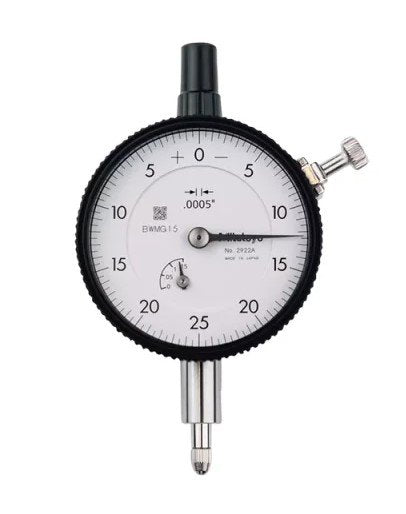

Mitutoyo 2922A | Dial Gauge | Lug Back | Series 2 | Graduation 0.0005 inch | Accuracy ± 0.0005 inch | Range 0.125 inch
The Mitutoyo 2922A Dial Gauge (Series 2) is designed for precise measurements with a graduation of 0.0005 inches. It offers an accuracy of ± 0.0005 inch, ensuring highly reliable results. The gauge has a measurement range of 0.125 inches, making it ideal for small, detailed measurements. Its lug-back design allows easy mounting and stable positioning during use. Built to Mitutoyo’s high-quality standards, it ensures durability and long-lasting performance. This dial gauge is perfect for applications requiring precise measurements in mechanical and quality control fields.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 0-25-0 |
Graduation | 0.0005 Inch |
Hysteresis | 0.00016 Inch |
Inch-Metric | Inch |
Measuring Force | 0.4 - 1.8 N |
Range | 0.125 Inch |
Repeatability | +/-0.0001 Inch |
Series | 2 |
Stem Dia | 9.52 mm or 0.375in |
Thread type | 4-48UNF |
Type | Dial Gauge |
Weight | 164 g |
- Graduation of 0.0005 inch: Provides highly precise measurement increments.
- Accuracy of ± 0.0005 inch: Ensures reliable and consistent measurement results.
- Measurement Range of 0.125 inch: Ideal for small, detailed measurements.
- Lug Back Design: Allows easy mounting for stable and secure positioning.
- Durable Construction: Built to Mitutoyo’s high-quality standards for long-lasting reliability.
- Versatile Application: It is Perfect for use in mechanical and quality control measurements.
