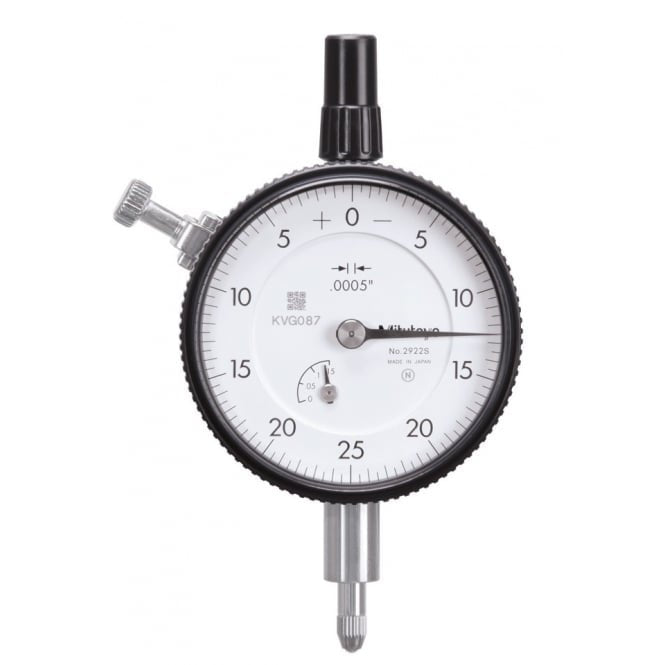

Mitutoyo 2922S | Dial Indicator | 0.125 in Range, 0.0005 in Graduation
This dial indicator, Mitutoyo part number 2922S, reads to 0.0005 in across a 0.125 in range. Use the 2922S for comparison measurement.
- 0-25-0 dial graduations; accuracy ±0.0005 in
- Jewelled bearing movement; O-ring sealing against water and oil ingress
- 1.8 N or less measuring force; carbide-tipped contact point
- Quench-hardened stainless steel stem and plunger; bezel clamp and optional lifting lever mount on either side without tools
- Special-alloy sector gears for better wear resistance
- Scratch- and chemical-resistant hard coating on the crystal
- Specifications
- Features
- Downloads
| Part Number | 2922S |
| Brand | Mitutoyo |
| Range | 0.125 in |
| Graduation | 0.0005 in |
| Dial Reading | 0-25-0 |
| Measuring Force | 1.8 N or less |
| Contact Point | Carbide tipped |
| Accuracy | ±0.0005 in |
| Bearing | Jewelled |
The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• A carbide contact point is used.
• The stem and plunger are made of high-strength quench-hardened stainless steel which resists arduous use.
• A special alloy is used for the sector gears to provide improved wear resistance.
• The indicator uses jewelled bearings, providing excellent indication sensitivity and durability.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
