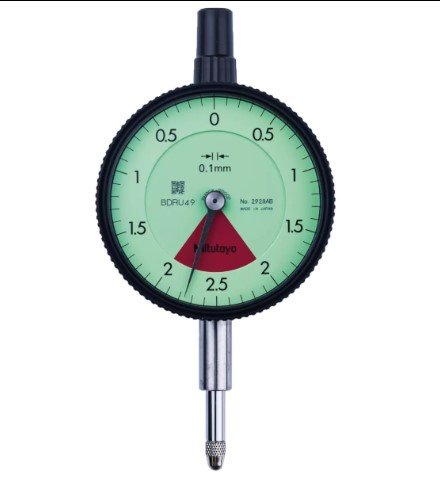

Mitutoyo 2928A | Dial Gauge | Lug Back | ISO Type | Series 2 | One Revolution | Graduation 0.01mm | Range 4 mm
The Mitutoyo 2928A is a high-precision Series 2 dial indicator featuring a lug-back design for secure mounting. It offers a 0–4 mm measuring range with 0.1 mm graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by eliminating the need to count multiple rotations. Designed to meet ISO/JIS standards, it ensures compatibility with global equipment. The shockproof construction enhances durability in demanding environments. This model is ideal for applications requiring precise linear measurements and reliable performance.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 2.0-0.0-2.0 |
Graduation | 0.1 mm |
Hysteresis | 12 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 25 µm |
Range | 4 mm |
Repeatability | 20 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Stroke | Plunger: 10 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 145 g |
- Precision Measurement: 0.01mm graduations with a 4mm range for accurate and reliable readings.
- One-Revolution Dial: Full measurement range covered in a single sweep to prevent misreadings.
- Lug Back Design: Provides secure and stable mounting for various inspection setups.
- ISO/JIS Standard Compliance: Ensures compatibility with international measuring equipment and fixtures.
- Shockproof Construction: Built to withstand impacts and demanding workshop environments.
- Durable Build Quality: Designed for consistent, long-term performance in industrial applications.
