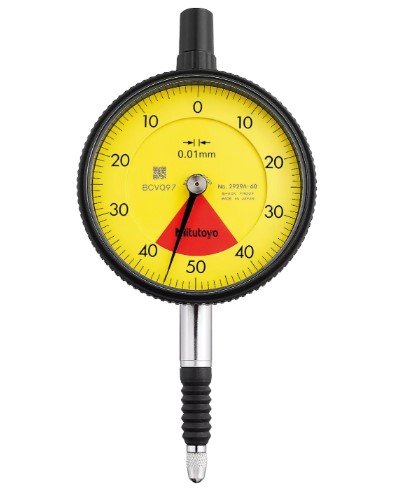

Mitutoyo 2929A-60 | Dial Gauge | Lug Back | ISO Type | Series 2 | One Revolution | Graduation 0.01mm | Range 0.8 mm
The Mitutoyo 2929A-60 is a high-precision Series 2 dial indicator featuring a lug back design for secure mounting. It offers a 0–0.8 mm measuring range with 0.01 mm graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by eliminating the need to count multiple rotations. Designed to meet ISO/JIS standards, it ensures compatibility with global equipment. The shockproof construction enhances durability in demanding environments. This model is ideal for applications requiring precise linear measurements and reliable performance.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 40.0-0.0-40.0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 2 N |
Measuring range | 7 µm |
Range | 0.8 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Stroke | Plunger: 5 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Type | EN ISO Standard |
Weight | 146 g |
- Precision Measurement: 0.01mm graduations with a 0.8mm range for fine, accurate readings.
- One-Revolution Dial: Full range is shown in a single pointer sweep, reducing reading errors.
- Lug Back Design: Allows secure and stable mounting in inspection fixtures or stands.
- ISO/JIS Compliance: Built to meet global measurement standards for universal compatibility.
- Shockproof Build: Durable construction resists damage in tough industrial environments.
- Reliable Performance: Ideal for applications needing consistent, repeatable measurements.
