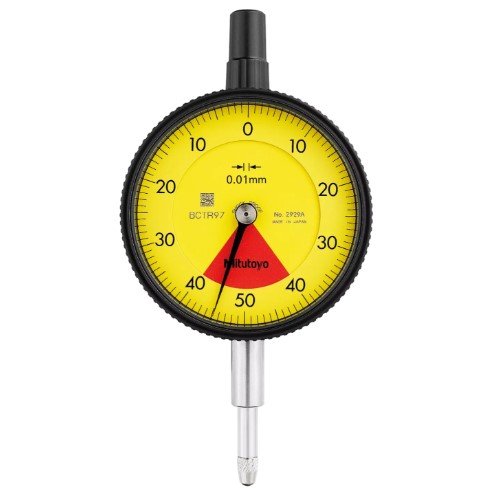

Mitutoyo 2929A | Dial Gauge | Lug Back | ISO Type | Series 2 | One Revolution | Graduation 0.01mm | Range 0.8 mm
The Mitutoyo 2929A is a high-precision Series 2 dial indicator featuring a lug-back design for secure mounting. It offers a 0–0.8 mm measuring range with 0.01 mm graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by eliminating the need to count multiple rotations. Designed to meet ISO/JIS standards, it ensures compatibility with global equipment. The shockproof construction enhances durability in demanding environments. This model is ideal for applications requiring precise linear measurements and reliable performance.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 40.0-0.0-40.0 |
Graduation | 0.01 mm |
Inch-Metric | Metric |
Measuring range | 0.4 - 1.4 N |
Range | 0.8 mm |
Series | 2 |
Stem Dia | 8.0 mm |
Stroke | Plunger: 5 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 145 g |
- Precision Measurement: 0.01mm graduations with a 0.8mm range for accurate results.
- One-Revolution Dial: Simplifies reading by covering the full range in one rotation.
- Lug Back Design: Ensures secure and stable mounting for various setups.
- ISO/JIS Standard Compliance: Meets international standards for compatibility.
- Shockproof Construction: Built for durability and reliability in tough conditions.
- Compact Size: Ideal for fine measurements in tight spaces and precision work.
