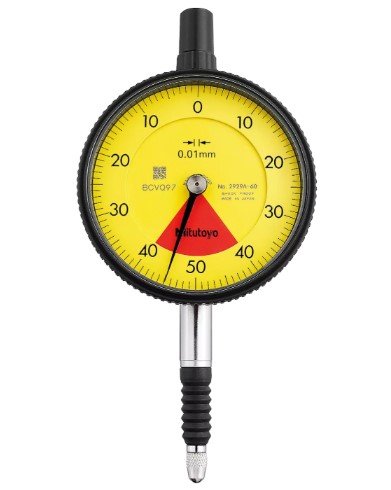

Mitutoyo 2929AB-60 | Dial Gauge | Flat Back | ISO Type | Series 2 | One Revolution | Graduation 0.01mm | Range 0.8 mm
The Mitutoyo 2929AB-60 is a high-precision Series 2 dial indicator featuring a flat back design for secure mounting. It offers a 0–0.8 mm measuring range with 0.01 mm graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by eliminating the need to count multiple rotations. Designed to meet ISO/JIS standards, it ensures compatibility with global equipment. The shockproof and waterproof construction enhances durability in demanding environments. This model is ideal for applications requiring precise linear measurements and reliable performance.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 40.0-0.0-40.0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 2 N |
Measuring range | 7 µm |
Range | 0.8 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Stroke | Plunger: 5 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 137 g |
- Precision Measurement: 0.01mm graduations with a 0.8mm range for high-accuracy readings.
- One-Revolution Dial: Displays the full measuring range in a single sweep to reduce misreadings.
- Flat Back Design: Ensures secure and stable mounting on flat surfaces and fixtures.
- ISO/JIS Compliance: Meets international standards for compatibility with global measurement systems.
- Shockproof & Waterproof Construction: Built to endure harsh working environments.
- Reliable Operation: Designed for long-term use in precision measurement tasks.
