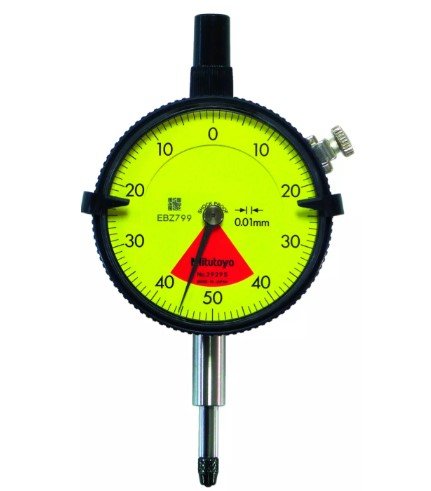

Mitutoyo 2929SB-62 | Dial Indicator | Flat Back | Series 2 | One Revolution | Graduation 0.01mm | Range 0.8 mm
The Mitutoyo 2929SB-62 is a high-precision Series 2 dial indicator featuring a flat back design for secure mounting. It offers a 0–0.8 mm measuring range with 0.01 mm graduations, ensuring accurate readings. The one-revolution dial simplifies measurements by eliminating the need to count multiple rotations. Designed to meet ISO/JIS standards, it ensures compatibility with global equipment. The shockproof construction enhances durability in demanding environments. This model is ideal for applications requiring precise linear measurements and reliable performance.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Functions | ISO type |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring range | 7 µm |
Range | 0.8 mm |
Repeatability | 3 µm |
Series | 2 |
Stem Dia | 8 mm |
Stroke | Plunger: 5 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 136 g |
- Precision Measurement: 0.01mm graduations with a 0.8mm range for fine, accurate measurements.
- One-Revolution Dial: Allows the entire range to be read in a single rotation for quick, error-free readings.
- Flat Back Design: Enables stable and secure mounting in a variety of inspection setups.
- ISO/JIS Standard Compliance: Ensures compatibility with international gauges and fixtures.
- Shockproof Construction: Built to endure impacts and demanding work environments.
- Reliable Build: Designed for consistent performance and long-term use in precision applications.
