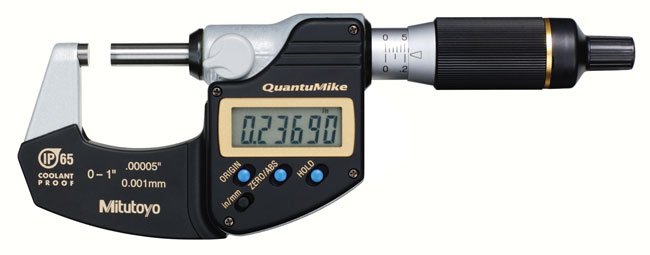

Mitutoyo 293-185 | Digimatic QuantuMike Micrometer | 0-1 in (0-25 mm), no output
Mitutoyo's 293-185 is a rapid-action, waterproof QuantuMike digital micrometer covering 0-25 mm / 0-1 in, reading to 0.001 mm or 0.00005 in. It has no data output; a heat shield in the frame helps hold accuracy over long measuring sessions.
- Range 0-25 mm / 0-1 in with inch/metric readout
- Accuracy ±0.00005 in (±1 µm)
- Faster measuring than a standard micrometer
- Stable frame with built-in heat shield
- Ratchet thimble for repeatable readings
- Specifications
- Features
- Downloads
| Part Number | 293-185 |
| Brand | Mitutoyo |
| Range | 0 - 25 mm / 0 - 1 in |
| Resolution | 0.001 mm / 0.00005 in |
| Accuracy | ±0.00005 in (±1 µm) |
| Units | Inch/Metric |
| Data Output | No |
| Type | QuantuMike |
Speedy measurement is achieved thanks to 2mm of spindle feed for every thimble revolution! Mitutoyo is proud to have reached its leading position in the micrometer market through a spirit of innovation, imagination and creating added value. The QuantuMike brand of micrometer, inspired by this Mitutoyo Spirit, provides users with an excellent measuring experience with higher speed, quality and stability than ever before owing to the integration of sophisticated manufacturing and processing technologies.
Speedy Measurement.
-
-
- Faster measurement is achieved by using a coarser thread which feeds the spindle by 2mm per revolution of the thimble instead of the standard 0.5mm. This increase in thread lead has been made possible thanks to new high precision thread-cutting and test techniques.
-
- Trials show that a reduction in positioning times of 60% and measuring times of 35% can be obtained, compared with a conventional micrometer.
-
