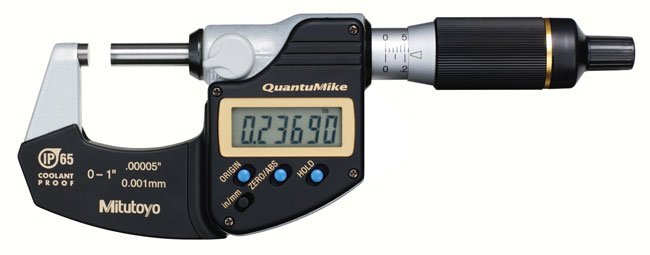

Mitutoyo 293-185 Digimatic QuantuMike Micrometer 0-25mm / 0-1 inch

Name: Mitutoyo 293-185 Digimatic QuantuMike Micrometer 0-25mm / 0-1 inch
Brand: Mitutoyo
SKU: 293-185
Availability: InStock

Part Number : 293-185

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-.00005" (+/-1 1/4m)
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	No
Measuring Units	Millimetre / Inch
Range	0-25mm / 0-1 inch
Resolution	0.001mm / .00005 inch
SKU	293-185
Type	QuantuMike

Speedy measurement is achieved thanks to 2mm of spindle feed for every thimble revolution! Mitutoyo is proud to have reached its leading position in the micrometer market through a spirit of innovation, imagination and creating added value. The QuantuMike brand of micrometer, inspired by this Mitutoyo Spirit, provides users with an excellent measuring experience with higher speed, quality and stability than ever before owing to the integration of sophisticated manufacturing and processing technologies.

Speedy Measurement.

- - Faster measurement is achieved by using a coarser thread which feeds the spindle by 2mm per revolution of the thimble instead of the standard 0.5mm. This increase in thread lead has been made possible thanks to new high precision thread-cutting and test techniques.
- - Trials show that a reduction in positioning times of 60% and measuring times of 35% can be obtained, compared with a conventional micrometer.
