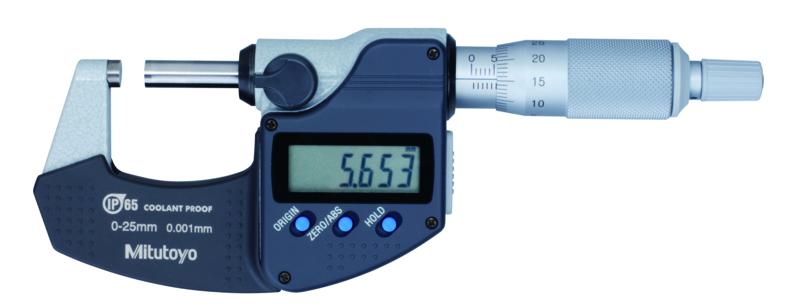

Mitutoyo 293-230-30 | IP65 Digital Outside Micrometer | 0–25 mm, Data Output
The Mitutoyo 293-230-30 is an IP65 coolant-proof digital micrometer for 0–25 mm, with data output. Accuracy is ±1 µm, and the main unit weighs 270 g. Plastic parts of the 293-230-30 are made from oil-resistant material.
- 0–25 mm range, with data output
- Accuracy ±1 µm over 0–25 mm; digital step 0.001 mm
- Micro-lap finish carbide faces; weight 270 g, battery life around 2.4 years
- Spindle lock and IP65 sealing for the 0–25 mm size
- Supplied in a box with key, 1 battery (0–25 mm size)
Credit purchase may have different price*
- Specifications
- Features
- Downloads
| Part Number | 293-230-30 |
| Brand | Mitutoyo |
| Range | 0–25 mm |
| Accuracy | ±1 µm |
| Digital Step | 0.001 mm |
| Units | Metric |
| Protection | IP65 (coolant-proof) |
| Data Output | Yes |
| Flatness | 0.3 µm |
| Spindle | ø6.35 mm, pitch 0.5 mm, with lock |
| Measuring Faces | Carbide-tipped, micro-lap finish |
| Battery Life | Approx. 2.4 years |
| Mass | 270 g |
| Supplied With | Box, key, 1 battery |
This IP65 micrometre has excellent precision without data output, is extremely durable, and comes with the following features:
All plastic pieces are made of an oil-resistant substance.
A remarkable 2,4-year battery life
This micrometer's excellent resistance to water and dust allows it to be utilised in machining scenarios where coolant fluid is splashed.
With SPC Data Output
