Part Number : 2973TB

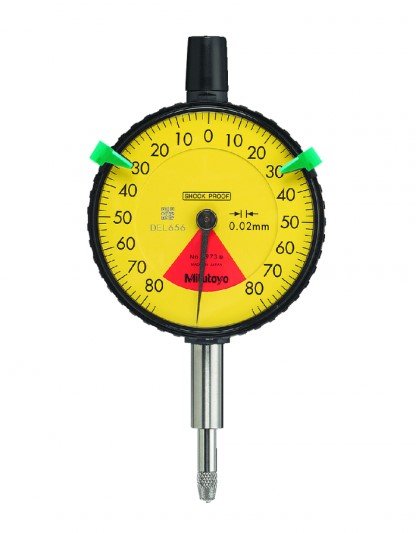

The Mitutoyo 2973TB is a high-precision Series 2 dial indicator designed for accurate linear measurements in industrial applications. It features a flat back design, allowing for secure mounting on various setups. With a 1.6mm measuring range and 0.02mm graduations, it is ideal for applications requiring tight tolerance measurements. The gauge complies with ISO/JIS standards, ensuring compatibility with industry-standard holders and accessories. Its one-revolution dial simplifies reading by eliminating the need to count multiple rotations, enhancing measurement efficiency.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Functions	ISO type
Graduation	0.02 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measuring range	16 µm
Range	1.6 mm
Repeatability	5 µm
Series	2
Stem Dia	8 mm
Stroke	Plunger: 3.5 mm
Thread type	M 2.5 x 0.45 mm
Type	Dial Indicator
Weight	75 g

Precision Measurement: 0.02mm graduations with a 1.6mm range for accurate, repeatable readings.
One-Revolution Dial: Simplifies reading by eliminating the need to track multiple pointer rotations.
Flat Back Design: Ensures stable and secure mounting in fixtures or inspection setups.
ISO/JIS Standard Compliance: Compatible with global equipment and industrial measurement standards.
Durable Construction: Shockproof, dustproof, and designed for reliable performance in demanding environments.
Cushioned Spindle End: Absorbs impact at full travel to protect internal mechanisms and extend gauge life.

DOWNLOAD CATALOG
