Mitutoyo 2990A-10 | Dial Gauge | ISO Type | Series 2 | Back Plunger Design | One Revolution | Graduation 0.001inch | Range 0.1inch

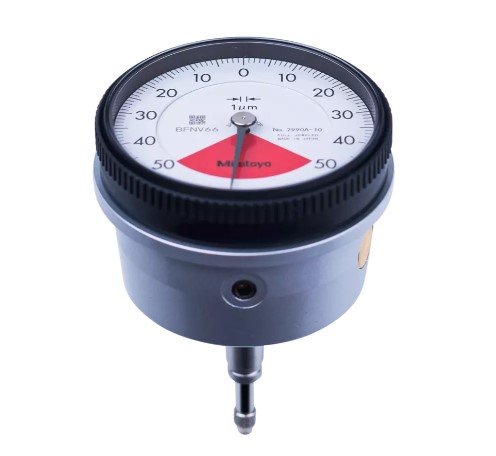

The Mitutoyo 2990A-10 is a precision dial gauge from Series 2, featuring a back plunger design for versatile mounting in various setups. Built to ISO standards, it is well-suited for international applications where compliance is essential. The one-revolution dial covers the entire 0.1-inch range in a single turn, allowing for quick and easy reading. With a fine graduation of 0.001 inch, it delivers accurate and reliable measurements. The larger Series 2 body enhances readability and handling, making it ideal for routine use. This gauge is perfect for precision inspection tasks in manufacturing and quality control environments.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 50-0-50 |
Graduation | 0.001 mm |
Hysteresis | 2 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.5 N |
Measuring range | 4 µm |
Range | 0.1 mm |
Repeatability | 1 µm |
Series | 2 |
Stem Dia | 8 mm |
Stroke | Plunger: 4 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 205 g |
- Back Plunger Design – Allows flexible and secure mounting in various configurations.
- One Revolution Dial – Displays the full 0.1-inch range in a single turn for quick readings.
- High Precision – 0.001 inch graduation ensures accurate and reliable measurements.
- ISO Standard – Compliant with international standards for quality and compatibility.
- Larger Series 2 Body – Offers enhanced readability and better handling during use.
- Durable Construction – Built for consistent performance in demanding environments.
