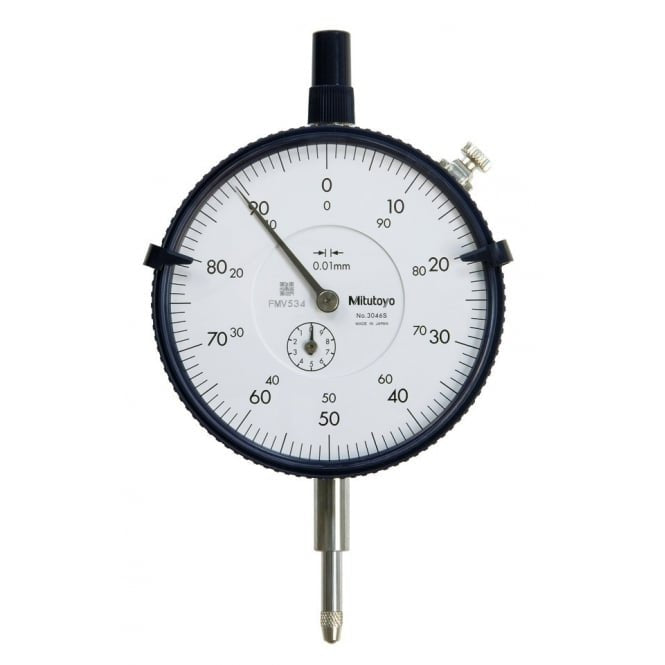

Mitutoyo 3046S | Large Diameter Dial Indicator | 10 mm Range, 0.01 mm Graduation
The Mitutoyo 3046S is a large diameter dial indicator with a 10 mm measuring range and 0.01 mm graduation. Use the 3046S for general measurement applications.
- Dial reading ±0-100; bezel clamp and limit markers included as standard
- Large-diameter dial face for easy reading; tool-free fitting of the clamp and optional lifting lever on left or right
- Quench-hardened stainless steel stem and plunger; measuring force of 1.4 N or less
- Graduated in 0.01 mm steps; range 10 mm; non-digital analogue display
- Specifications
- Features
- Downloads
| Part Number | 3046S |
| Brand | Mitutoyo |
| Range | 10 mm (0.394 in) |
| Graduation | 0.01 mm |
| Dial Reading | ±0-100 |
| Measuring Force | 1.4 N or less |
| Dial Type | Large diameter |
• Dial indicators with a large-diameter dial face for easy reading.
• Models with longer measuring ranges are also available.
• Both the stem and the plunger are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• All types are supplied with limit markers and a bezel clamp as standard.
• The bezel clamp and lifting lever (optional)*1 can be attached to either the right or left side. These parts can be easily installed and removed without tools.
