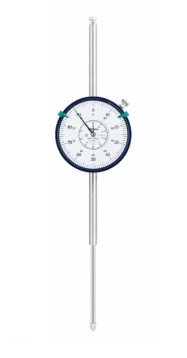

Mitutoyo 3060A-19 | Dial Indicator | Jewelled Bearing | Series 3 | Graduation 0.01mm | Accuracy 0.045mm | Range 80mm
The Mitutoyo 3060A-19 Dial Indicator is a high-precision measuring tool designed for a wide range of industrial and mechanical applications. Part of Mitutoyo Series 3, it features jewelled bearings for smooth operation and reduced friction, ensuring accurate and reliable performance over time. The indicator has a graduation of 0.01mm and provides an accuracy of 0.045mm, making it ideal for precise measurements. With a range of 80mm, it is suitable for measuring larger displacements or variations. The Mitutoyo 3060A-19 is commonly used in machining, quality control, and alignment tasks, offering dependable results for demanding environments.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | +/-0 - 100 |
Graduation | 0.01 mm |
Hysteresis | 9 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 3 N |
Measuring range | 45 µm |
Range | 80 mm |
Repeatability | 3 µm |
Series | 3 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 314 g |
- Jewelled Bearing: Features jewelled bearings for smooth operation and minimal friction, ensuring high accuracy and durability.
- Graduation: 0.01mm graduation for precise and fine measurements.
- Accuracy: 0.045mm accuracy, providing reliable and repeatable results.
- Range: 80mm measuring range, suitable for a variety of medium to large-scale measurement tasks.
- Durable Construction: Built for long-lasting performance in industrial environments.
- Versatile Applications: Ideal for machining, quality control, and alignment tasks that require accurate displacement measurements.
