Part Number : 3109A-10

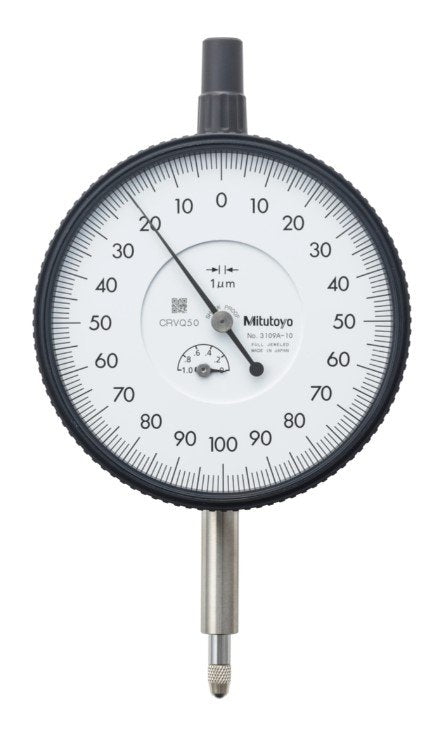

The Mitutoyo 3109A-10 is an ultra-precision dial gauge crafted for applications requiring extremely fine measurements. It features a lug back for secure and flexible mounting, and is part of the ISO-compliant Series 3, ensuring global quality standards. With an exceptional 0.001 mm graduation and a 1 mm range, it's ideal for high-accuracy inspection and calibration tasks. The jeweled bearing mechanism provides friction-free movement for long-lasting precision. This gauge is perfect for use in laboratories, toolrooms, and quality control environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: M 2.5 x 0.45 mm
Dial Reading	0.0-100.0-0.0
Digital/Analog	Analog
Graduation	0.001 mm
Hysteresis	2 µm
Inch-Metric	Metric
Mass (main unit)	270 g
Measuring Force	0.4 - 1.5 N
Measuring range	5 µm
Range	1 mm
Repeatability	1.0 µm
Series	3
Stem Dia	8.0 mm
Type	Dial Gauge

Type: Dial Gauge with Lug Back, facilitating versatile mounting options.
Series: Part of Series 3, featuring a large, easy-to-read dial face with a diameter of 78 mm.
Graduation: 0.001 mm, providing high-resolution measurements suitable for precision tasks.
Measuring Range: 1 mm, ideal for applications requiring fine measurement accuracy.
Accuracy: ±0.015 mm, ensuring reliable and consistent measurements.
Dial Reading: 0-10-0, allowing for clear and straightforward interpretation of measurements.
Shockproof Design: Equipped with a shockproof mechanism to protect internal components from sudden impacts.
Jeweled Bearing: Incorporates a jeweled bearing for smooth and precise movement, enhancing durability.
Measuring Force: 1.5 N or less, minimizing the risk of measurement errors due to excessive force.
Additional Features: Comes with an outer frame clamp and limit pins for added functionality.
