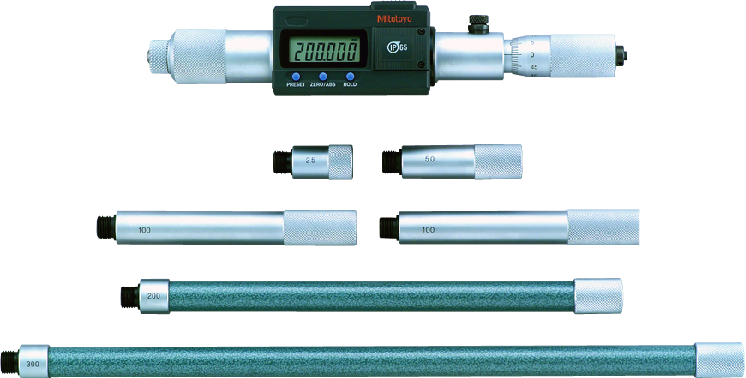

Mitutoyo 337-304 Digital Tubular Inside Micrometer (Rod) Inch/Metric, 8-60", IP65, incl. 7 Rods
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces.
- Digimatic type, with data output.
- It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
- Specifications
- Features
- Downloads
| Analog/Digital | Digital |
| Data Output | Yes |
| Delivered | Including box, key, 1 battery |
| Digital step | 0.0001 |
| Display | LCD, character height 7.5 mm |
| Extension rod | 7 (1, 2, 4, 8, 12 |
| Extension | : ƒ ̧12.5 mm |
| Inch-Metric | Inch/Metric |
| Mass (main unit) | 1410 g |
| Measuring span | 1 |
| Measuring spindle | Spindle pitch 0.635 mm |
| Measuring surfaces | Carbide |
| Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
| ZERO/ABS | Yes |
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces.
- Digimatic type, with data output.
- It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
