Part Number : 3414AB

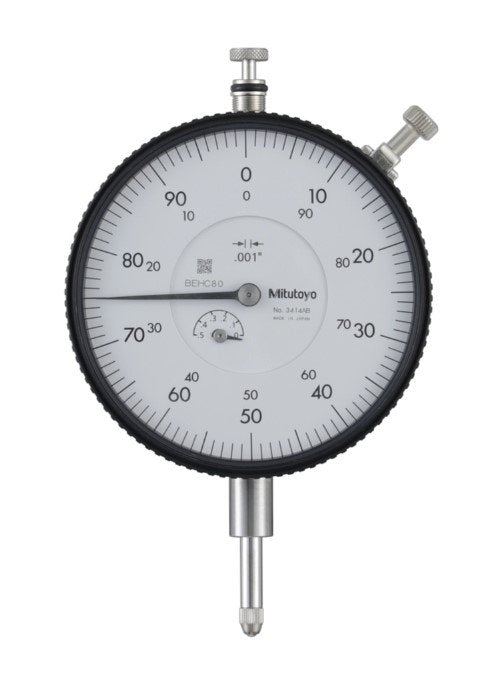

The Mitutoyo 3414AB is a high-precision dial gauge designed for critical measurements in industrial and laboratory environments. It features a flat back design for secure and stable mounting on a variety of setups. With a 0.001 inch graduation and 0.5 inch range, it provides excellent accuracy for fine measurements. The gauge meets ANSI/AGD Type standards, ensuring compatibility with industry measurement systems. Its durable construction and smooth operation make it ideal for tasks that require consistent and precise measurement over time.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4.0-48.0UNF
Dial Reading	+/-0-100
Digital/Analog	Analog
Graduation	0.001 inch
Hysteresis	0.0002 inch
Inch-Metric	Metric
Mass (main unit)	244 g
Measuring Force	0.4 - 1.8 N
Range	0.5 inch
Repeatability	+/-0.0002 inch
Series	3
Stem Dia	9.52 mm Or 0.375 inch
Type	Dial Gauge

Type: Dial Gauge with Flat Back, facilitating stable and secure mounting on fixtures.
Series: Part of Series 3, featuring a large, easy-to-read dial face with a diameter of 78 mm.
Graduation: 0.001 inch, providing high-resolution measurements suitable for precision tasks.
Measuring Range: 0.5 inch, ideal for applications requiring fine measurement accuracy.
Accuracy: ±0.001 inch, ensuring reliable and consistent measurements.
Dial Reading: ±0-100, allowing for clear and straightforward interpretation of measurements.
Shockproof Design: Equipped with a shockproof mechanism to protect internal components from sudden impacts.
Jeweled Bearing: Incorporates a jeweled bearing for smooth and precise movement, enhancing durability.
Measured Force: 1.8 N or less, minimizing the risk of measurement errors due to excessive force.
Compliance: Conforms to ANSI/AGD standards, ensuring compatibility with standard accessories and fixtures.
Additional Features: Supplied with limit markers and a bezel clamp as standard, and delivered with a certificate of inspection.
