Mitutoyo 3424A-19 | Dial Gauge | Lug Back | ANSI/AGD Type | Series 3 | Jewelled Bearing | Graduation 0.001 inch | Range 2 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 3424A-19

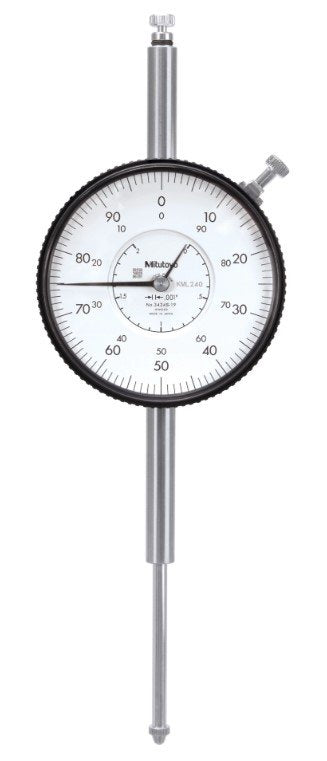

Mitutoyo 3424A-19 Dial Gauge delivers reliable precision for a variety of measurement applications. Features a Lug Back design for versatile mounting on stands or fixtures. Conforms to ANSI/AGD Type standards, ensuring consistency and accuracy. Part of Series 3, with a Graduation of 0.001 inch for high-precision measurements. Offers a Range of 2 inches and is equipped with Jewelled Bearings for smooth operation and durability.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Carbide tipped, thread: 4-48UNF
Dial Reading	+/-0-100
Digital/Analog	Analog
Graduation	0.001 Inch
Hysteresis	0.00033 Inch
Inch-Metric	Inch
Mass (main unit)	321 g
Measuring Force	0.4 - 3 N
Range	2 Inch
Repeatability	+/-0.0002 Inch
Series	3
Stem Dia	9.52 mm Or 0.375 Inch
Type	Dial Gauge

Model: 3424A-19 from Mitutoyo Series 3
Range: 2 inches – suitable for extended measurement applications
Graduation: 0.001 inch – provides fine, accurate readings
Back Type: Lug Back – allows for easy mounting and secure positioning
Bearings: Jewelled Bearings for smooth movement and enhanced durability
Standard: Meets ANSI/AGD Type specifications for universal compatibility
Build Quality: Rugged construction for industrial use with consistent, repeatable performance

DOWNLOAD CATALOG
