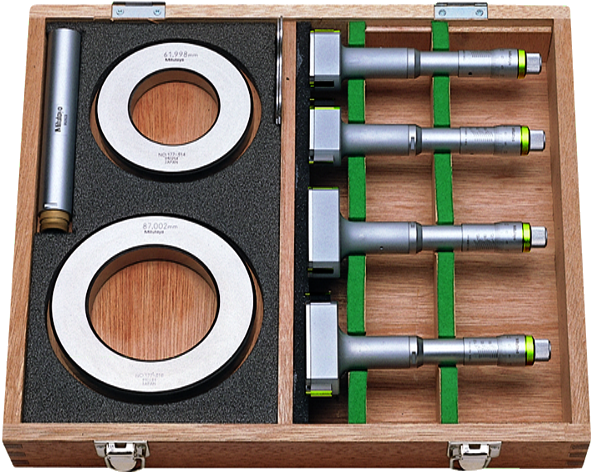

Mitutoyo 368-914 3-Point Internal Micrometer Holtest Set 50-100mm (4 pcs.)
This is a set of three-point and two-point internal micrometers that offers you the following
benefits:
- Complete unit set.
- Carbide measuring surface (2-6 mm range)
- Titanium-coated measuring pins (> 6 mm range) give you excellent durability and impact resistance.
- Delivered with setting rings
- Specifications
- Features
- Downloads
Delivered | Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only) |
Digital/Analog | Analog |
Extension rod | 952623 |
Graduation | ¢°¤ 12 mm range: 0.001 mm, > 12 mm range: 0.005 mm |
Inch-Metric | Metric |
Individual ranges | 50-63, 62-75, 75-88, 87-100 mm |
Mass (main unit) | 2030 g |
Measuring method | 3-point |
Measuring spindle | Spindle pitch 0.5 mm |
Measuring surfaces | Titanium coated tungsten carbide taper: tungsten carbide |
Models included | 368-170 / 368-171 / 368-172 / 368-173 |
Range | 50 - 100 mm |
Scale | Thimble and sleeve satin chrome finish, Up to 12 mm : ƒ‹œ 17 mm Over 12 mm : ƒ‹œ 23 mm |
Setting rings included | ƒ ̧62 mm (177-314) ƒ ̧87 mm (177-318) |
Spindle pitch | Spindle pitch 0,5 mm |
This is a set of three-point and two-point internal micrometers that offers you the following
benefits:
- Complete unit set.
- Carbide measuring surface (2-6 mm range)
- Titanium-coated measuring pins (> 6 mm range) give you excellent durability and impact resistance.
- Delivered with setting rings
