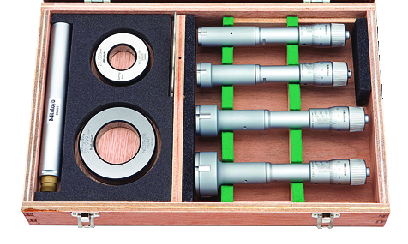

Mitutoyo 368-992, 3-Point Internal Micrometer Holtest Set 20-50mm (4 pcs.), Economy Set
This is an economy version of a three-point internal micrometer, that offers you the following benefits:
- Hardened tool steel anvils and tapers allow a more economically priced and affordable tool.
- Individual types without setting rings or extensions.
- Sets with setting rings and extensions.

Free UAE shipping available
- Specifications
- Features
- Downloads
Delivered | Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only) |
Digital/Analog | Analog |
Extension rod | 952622 |
Graduation | 0.005 mm |
Inch-Metric | Metric |
Individual ranges | 20-25, 25-30, 30-40, 40-50 mm |
Mass (main unit) | 1160 g |
Measuring method | 3-point |
Measuring spindle | Spindle pitch 0.5 mm |
Measuring surfaces | Hardened steel taper: hardened steel |
Models included | 368-766 / 368-767 368-768 / 368-769 |
Range | 20 - 50 mm |
Scale type | Thimble and sleeve satin chrome finish, Up to 12 mm : ƒ‹œ 17 mm Over 12 mm : ƒ‹œ 23 mm |
Setting rings included | ƒ ̧25 mm (177-139) ƒ ̧40 mm (177-290) |
Spindle pitch | Spindle pitch 0,5 mm |
This is an economy version of a three-point internal micrometer, that offers you the following benefits:
- Hardened tool steel anvils and tapers allow a more economically priced and affordable tool.
- Individual types without setting rings or extensions.
- Sets with setting rings and extensions.
Related Products

Mitutoyo 368-774, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 100 - 125 mm, Graduation 0.005 mm

Mitutoyo 368-774, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 100 - 125 mm, Graduation 0.005 mm

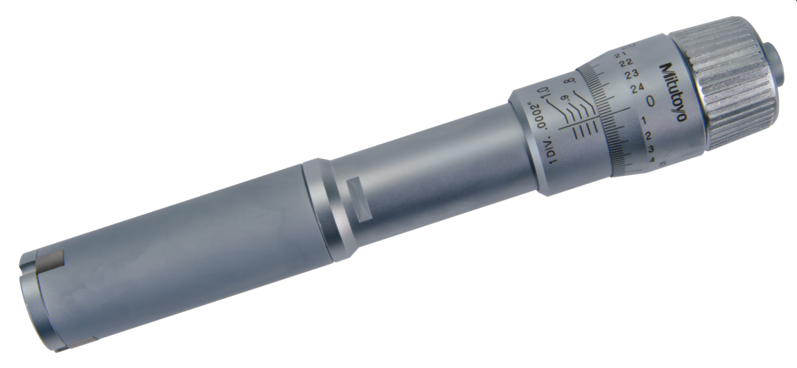

Mitutoyo 368-866, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range .8 - 1" , Graduation.0002"

Mitutoyo 368-866, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range .8 - 1" , Graduation.0002"

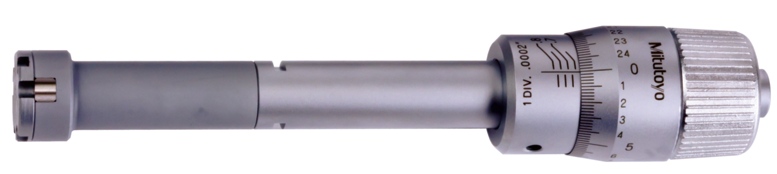

Mitutoyo 368-865, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range .65 - .8" , Graduation .0002"

Mitutoyo 368-865, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range .65 - .8" , Graduation .0002"

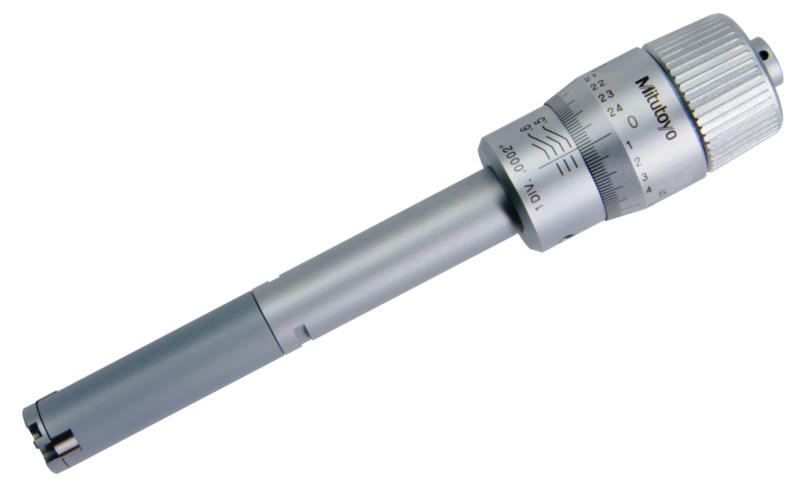

Mitutoyo 368-864, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range .5 - .65", Graduation .0002"
Mitutoyo 368-864, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range .5 - .65", Graduation .0002"

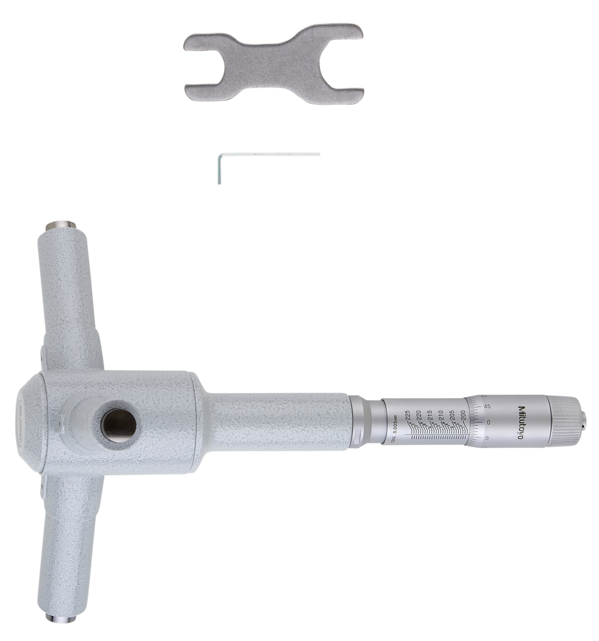

Mitutoyo 368-781, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 275 - 300 mm, Graduation 0.005 mm

Mitutoyo 368-781, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 275 - 300 mm, Graduation 0.005 mm

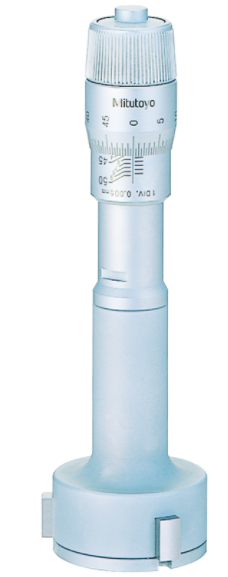

Mitutoyo 368-780, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 250 - 275 mm, Graduation 0.005 mm

Mitutoyo 368-780, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 250 - 275 mm, Graduation 0.005 mm

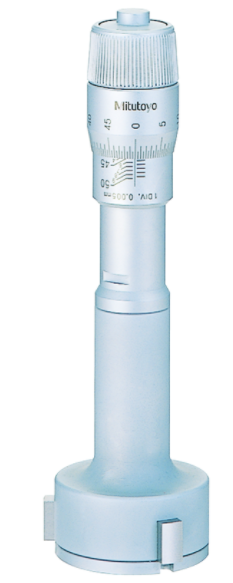

Mitutoyo 368-779, 3-Holtest (Type II) Three-Point Bore Micrometer Economy Type, Range 225 - 250 mm, Graduation 0.005 mm
