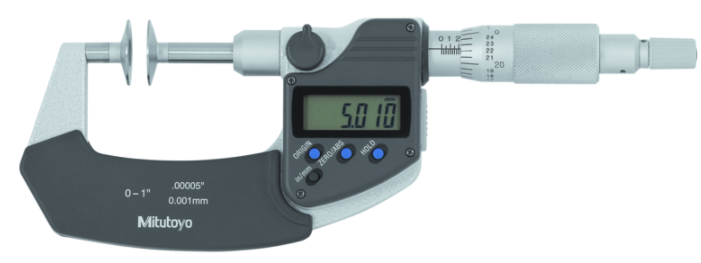

Mitutoyo 369-350-30 | Non-Rotating Spindle Disc Micrometer | 0–1 in, IP65, 20 mm Disc
Part Number : 369-350-30
The Mitutoyo 369-350-30 pairs a non-rotating spindle with 20 mm disc faces over 0–1 in, so the faces do not twist against the part. It measures root tangent length on spur and helical gears from 0.5 to 6 module and also suits soft materials such as felt, rubber, cardboard and fabric.
- Range 0–1 in with 0.00005 in / 0.001 mm digital step
- Non-rotating spindle with disc-shaped measuring faces, 20 mm diameter
- Flatness 0.00004 in, parallelism 0.0002 in for the 0–1 in span
- IP65 rated, with data output, ZERO/ABS and spindle lock
- Main unit 340 g; battery life approx. 2.4 years
