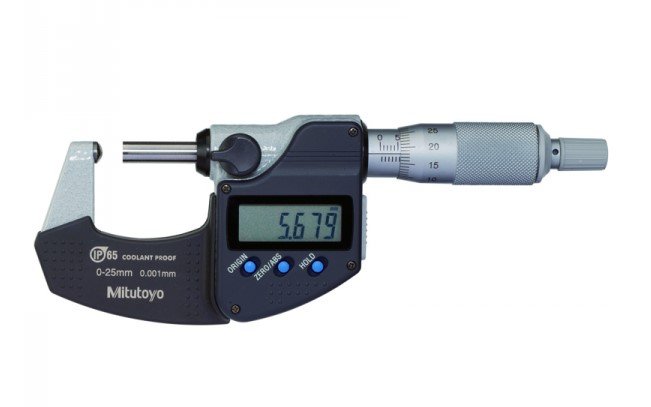

Mitutoyo 395-351 | Digimatic Tube Micrometer | Spherical Anvil | Series 395 | Graduation 0.00005 inch | Accuracy ± 0.0001 inch | Range 0 to 1 inch
The Mitutoyo 395-351 Digimatic Tube Micrometer features a spherical anvil for precise measurements of tube thickness. It offers a measurement range from 0 to 1 inch with a graduation of 0.00005 inch for high-resolution accuracy. The micrometer boasts an impressive accuracy of ±0.0001 inch, ensuring reliable results. Its digital display provides easy-to-read measurements for enhanced convenience. The tool is part of Mitutoyo's Series 395, designed for specialized applications in precision measurement. This micrometer is ideal for measuring thin-walled tubes with exceptional precision.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.0001 Inch |
Analog/Digital | Digital |
Auto shut-off | After 20 min. non use: Yes |
Battery Life | Approx. 2.4 years |
Contact point | Carbide-tipped |
Digital step | 0.00005in or 0.001 mm |
Display | LCD, character height 7.5 mm |
Finish | Micro-lap finish |
Flatness | 0.000012 Inch |
Inch-Metric | Inch/Metric |
Lock function | Yes |
Measuring Force | 5 - 10 N |
Measuring spindle | With spindle lock, ƒ ̧6,35 mm |
Power Supply | 1 battery SR-44 |
Range | 0 - 1 Inch |
Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
Series | 395 |
Spindle End | Type A, spherical anvil SR=4 mm/flat spindle |
Spindle pitch | 0.5 mm |
Type | Digimatic Tube Micrometer |
Weight | 270 g |
- Spherical Anvil: Designed to measure tube thickness with high precision.
- Measurement Range: 0 to 1 inch for versatile use in various applications.
- High Graduation: 0.00005 inch for ultra-fine resolution.
- Superior Accuracy: ±0.0001 inch for reliable and consistent results.
- Digital Display: Easy-to-read digital output for quick and precise measurements.
- Mitutoyo Quality: Part of Series 395, known for durable, high-precision instruments.
Related Products

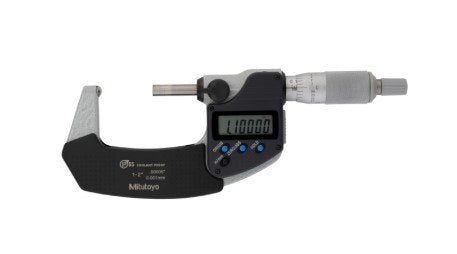

Mitutoyo 395-352 | Digimatic Tube Micrometer | Series 395 | Resolution 0.001mm | Accuracy ± 0.002mm | Range 25 to 50mm

Mitutoyo 395-352 | Digimatic Tube Micrometer | Series 395 | Resolution 0.001mm | Accuracy ± 0.002mm | Range 25 to 50mm

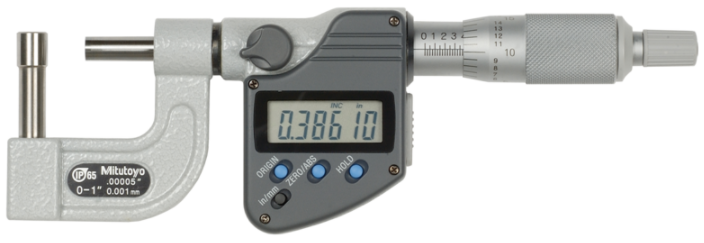

Mitutoyo 395-364-30 Digital Tube Micrometer, IP65, Inch/Met. Spherical Anvil Flat Spindle, 0-1"

Mitutoyo 395-364-30 Digital Tube Micrometer, IP65, Inch/Met. Spherical Anvil Flat Spindle, 0-1"

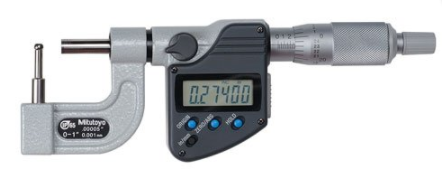

Mitutoyo 395-363-30 Digital Tube Micrometer, IP65, Inch/Met. Spherical Anvil Flat Spindle, 0-1"

Mitutoyo 395-363-30 Digital Tube Micrometer, IP65, Inch/Met. Spherical Anvil Flat Spindle, 0-1"

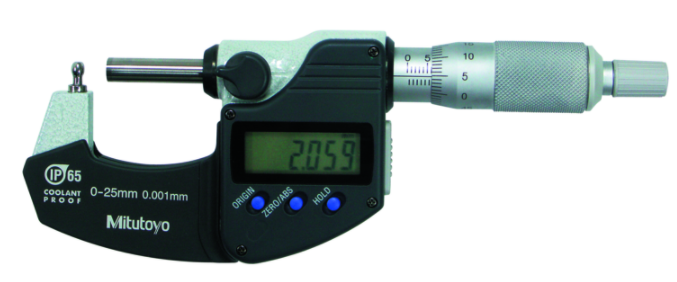

Mitutoyo 395-362-30 Digital Tube Micrometer, IP65, Inch/Met. Spherical Anvil Flat Spindle, 0-1"

Mitutoyo 395-362-30 Digital Tube Micrometer, IP65, Inch/Met. Spherical Anvil Flat Spindle, 0-1"

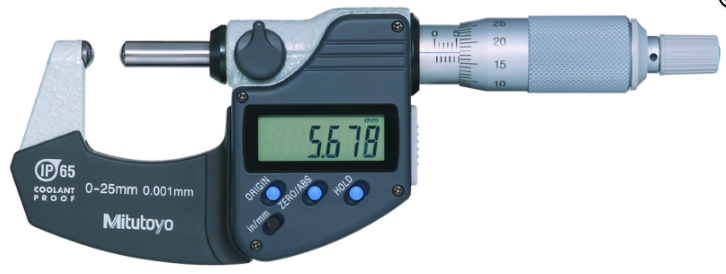

Mitutoyo 395-374-30 Digital Tube Microm. Sph. Anvil/Spindle Inch/Metric, 3-4", IP65

Mitutoyo 395-374-30 Digital Tube Microm. Sph. Anvil/Spindle Inch/Metric, 3-4", IP65

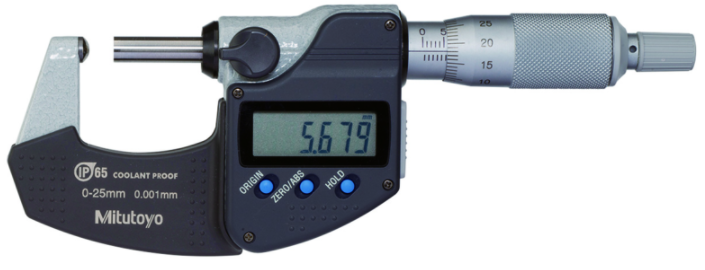

Mitutoyo 395-354-30 Digital Tube Micrometer, Spherical Anvil Inch/Metric, 3-4", IP65

Mitutoyo 395-354-30 Digital Tube Micrometer, Spherical Anvil Inch/Metric, 3-4", IP65

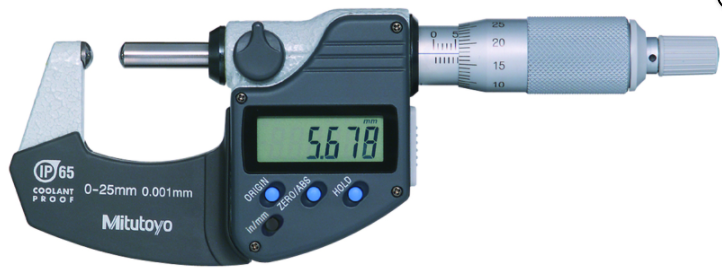

Mitutoyo 395-373-30 Digital Tube Microm. Sph. Anvil/Spindle Inch/Metric, 2-3", IP65
