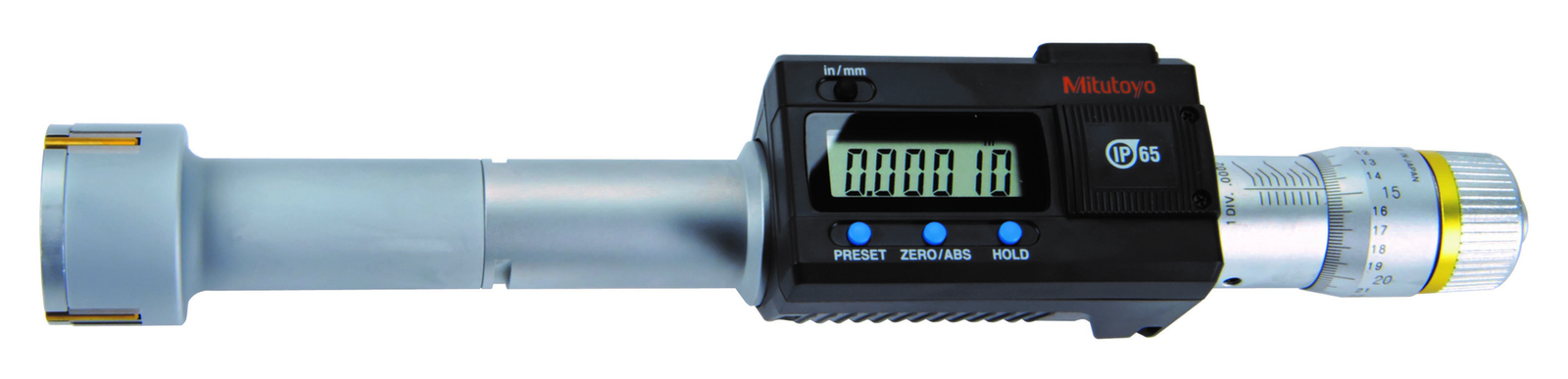

Mitutoyo 468-268 | Digital Holtest 3-Point Bore Micrometer | 1.2–1.6 in (30.48–40.64 mm)
For bores between 30.48–40.64 mm (1.2–1.6 in), the Mitutoyo 468-268 gives a direct digital reading via three contact points. The 468-268 ships without rings or extensions; dust and water protection is to IP65.
- 1.2–1.6 in range read to 0.00005 in (0.001 mm); data output and ZERO/ABS on a 7.5 mm LCD
- Titanium-coated hardened steel pins and carbide taper, sized for 30.48–40.64 mm
- 480 g main unit with roughly 1.2 years per battery
- Box, key, one battery and inspection certificate supplied with this 30.48–40.64 mm gauge
- Specifications
- Features
- Downloads
| Part Number | 468-268 |
| Brand | Mitutoyo |
| Type | Holtest 3-point internal micrometer, individual |
| Range | 1.2–1.6 in (30.48–40.64 mm) |
| Resolution | 0.00005 in (0.001 mm) |
| Units | Inch/Metric |
| Measuring Surfaces | Titanium-coated hardened steel; taper tungsten carbide |
| Protection | IP65 |
| Display | LCD, 7.5 mm characters |
| Data Output | Yes |
| ZERO/ABS | Yes |
| Battery Life | Approx. 1.2 years |
| Mass | 480 g |
| Supplied With | Box, key, 1 battery, inspection certificate |
These are three-point internal micrometers that offer you the following benefits:
- Individual micrometer.
- Titanium-coated measuring pins give you excellent
durability and impact resistance. - They also have excellent
resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid. - Large LCD display with character height of 7,5 mm enables you to read measurements easily.
- Without setting rings or extensions.
