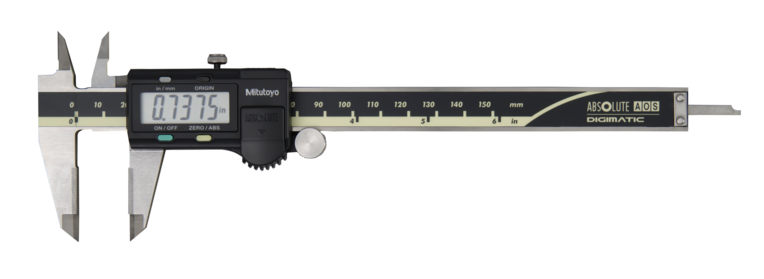

Mitutoyo 500-175-20 ABSOLUTE Digimatic Caliper 0-150mm / 0-6"
A Mitutoyo digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with ABSOLUTE System scale for error free, high-speed measurement. SPC data output. The ZERO/ABS button permits the show to be Zero-Set at any slider position along the scale for comparison estimations. This button will too permit return to the supreme (ABS) mode and show of the genuine position from the beginning (more often than not jaws closed point). • Huge and clear LCD readout. • Smooth slider development makes for comfortable operation. • 20,000 hours battery life. • Can measure outside and inside dimensions, depth, and steps.. • Carbide-tipped jaw calipers grant the longest life when measuring unpleasant wrapped up parts, castings, grinding wheels, etc. • Information yield work permits integration into factual handle control and estimation frameworks
- Specifications
- Features
- Downloads
| Accuracy | +/-0.02 mm (.001") |
| Brand | Mitutoyo |
| Data Output | Yes |
| Display Type | Digital |
| Measuring Units | Millimetre / Inch |
| Range | 0-150mm / 0-6 inch |
| Resolution | 0.01mm / .0005 inch |
| SKU | 500-175-20 |
| Type | Standard |
Carbide-tipped jaws for outside and inside measurement
With SPC Data Output
