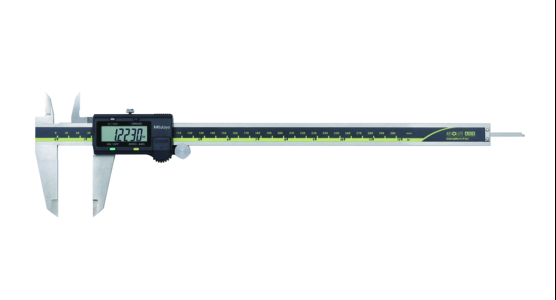

Mitutoyo 500-193-30 | ABSOLUTE AOS Digital Caliper | 0-300 mm / 0-12 in, no output
Measuring 0-300 mm / 0-12 in, the 500-193-30 from Mitutoyo uses an AOS electromagnetic induction encoder, so water or oil on the scale does not upset the reading. The ABS encoder keeps track of position over the full 0-300 mm / 0-12 in, with no re-zeroing after power-on.
- 0.01 mm / 0.0005 in readout across 0-300 mm / 0-12 in
- Measuring accuracy ±0.03 mm (±0.0015 in); display-only, no data output
- Contamination on the scale face does not affect detection; no re-zeroing at switch-on; no response-speed limit
- 11 mm LCD characters; comfortable slider feel
Credit purchase may have different price*
- Specifications
- Features
- Downloads
| Part Number | 500-193-30 |
| Brand | Mitutoyo |
| Range | 0-300 mm / 0-12 in |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.03 mm (±0.0015 in) |
| Units | Inch/Metric |
| Encoder | AOS electromagnetic induction (ABS) |
| Character Height | 11 mm |
| Data Output | No |
- AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
- The slider provides smooth, stable and comfortable operation.
- Character height: 9 mm (150 and 200 mm), 11 mm (300 mm)
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
