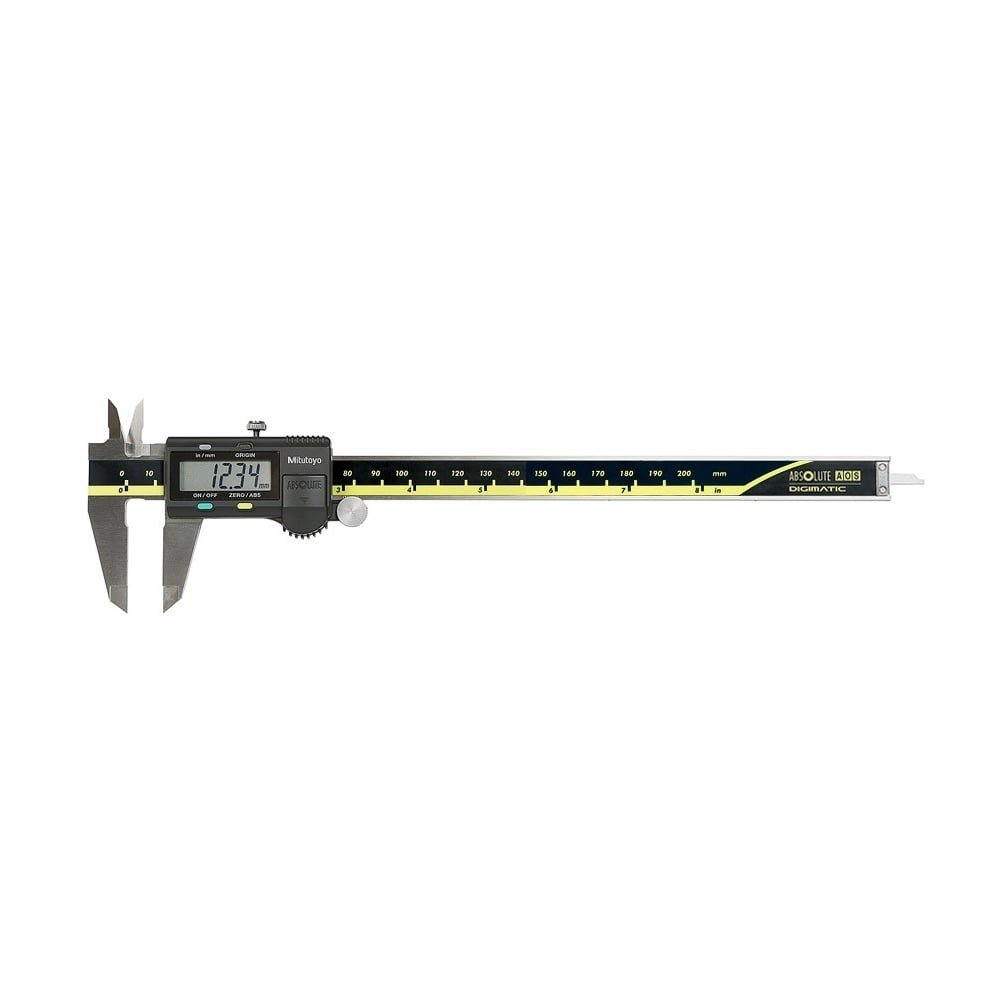

Mitutoyo 500-197-30 | ABSOLUTE AOS Digital Caliper | 0–200 mm / 0–8 in, 0.01 mm
With a 0–200 mm / 0–8 in range, 0.01 mm / 0.0005 in resolution and ±0.02 mm (0.001 in) accuracy, the 500-197-30 is an ABSOLUTE AOS digital caliper from Mitutoyo. Its electromagnetic induction AOS encoder is not affected by water or oil on the scale. This version has no data output.
- Origin setting is not required each time the caliper is switched on
- Slider can be moved at any speed without overspeed errors
- AOS sensor tolerant of dirt on the scale face
- Carbide-tipped jaws
- Body and jaws in hardened stainless steel
Credit purchase may have different price*
- Specifications
- Features
- Downloads
| Part Number | 500-197-30 |
| Brand | Mitutoyo |
| Range | 0–200 mm / 0–8 in |
| Data Output | No |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.02 mm (0.001 in) |
| Units | Inch / metric |
| Jaws | Carbide-tipped |
- Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
- The slider provides smooth, stable and comfortable operation.
- Character height: 9 mm (alleviation of fatigue with the high-contrast LCD)
- The ABS (ABSOLUTE) scale requires no origin setting after power-on and also has no limit to response speed.
- Extraordinary battery life
