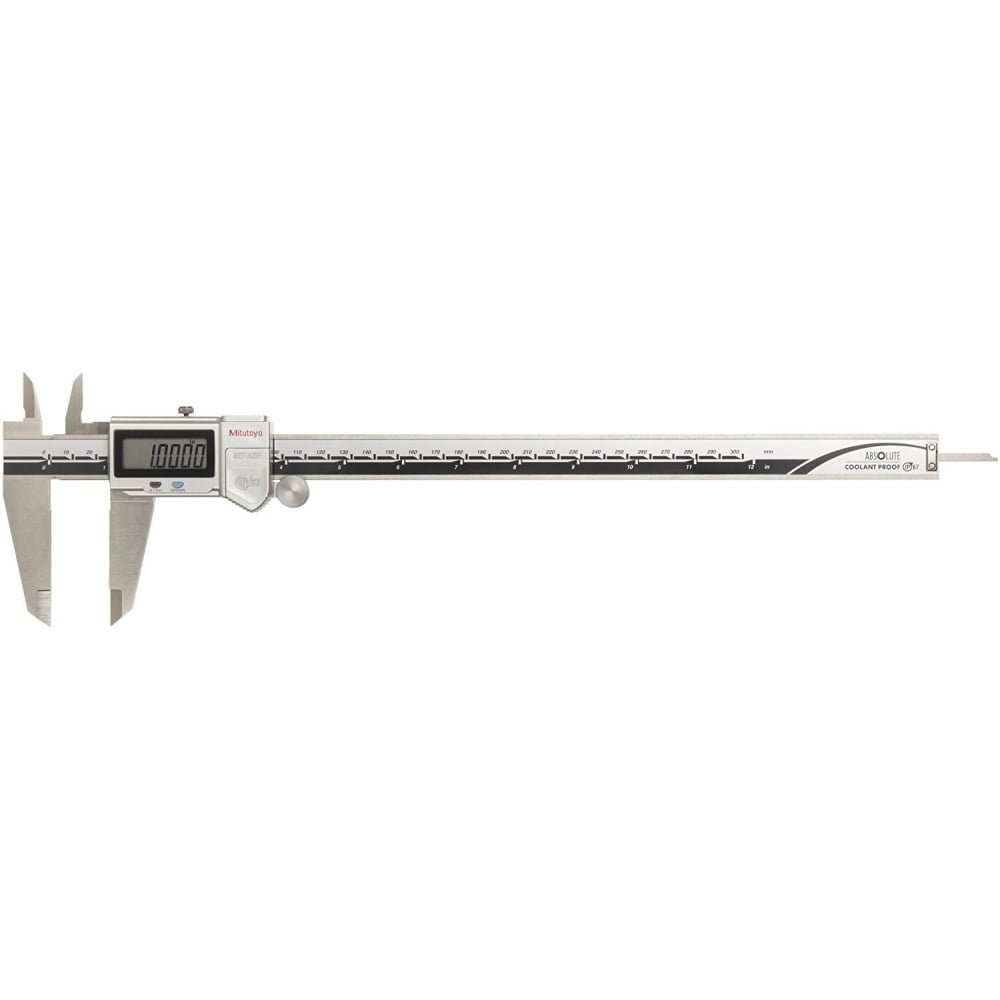

Mitutoyo 500-754-10 ABSOLUTE Digimatic Coolant Proof Caliper 0-300mm / 0-12"
Can be utilised in a workshop where coolant, water, dust, or oil are present. The rest of the characteristics and price are identical to those of conventional items. To assure quality and reliability, a complete inspection with an air leak test is carried out.
• The display is simple to see with large LCD characters.
• Incorporates Mitutoyo's ABSOLUTE measuring system; • Simple to operate - sophisticated design styling with only one button • SPC data output models can be linked into statistical process control and measurement systems without the need to reset the origin.
Outside and inside dimensions, depth, and steps can all be measured.
• The LCD display is turned off automatically after 20 minutes of inactivity, but the ABS scale unit origin is saved. When the slider is moved, power is restored.
• Measurement data can be translated to keyboard signals and directly entered into commercial spreadsheet software using a simple interface input tool.
• A standard inspection certificate is included. (However, because it is undated, it cannot be used as a calibration certificate.)

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.03 mm (.0015") |
Analog/Digital | Digital |
Brand | Mitutoyo |
Data Output | No |
Measuring Units | Millimetre / Inch |
Range | 0-300mm / 0-12 inch |
Resolution | 0.01mm / .0005 inch |
SKU | 500-754-10 |
Type | Standard |
Large LCD characters make the display easy to read
Easy to use – advanced design styling with only 1 button
