Mitutoyo 513-442-10T | Dial Test Indicator | Horizontal 20° Face | Series 513 | Full Set | Swivel Clamp | Stem 4/9.52 mm | Graduation 0.0005 inch | Range 0.06 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-442-10T

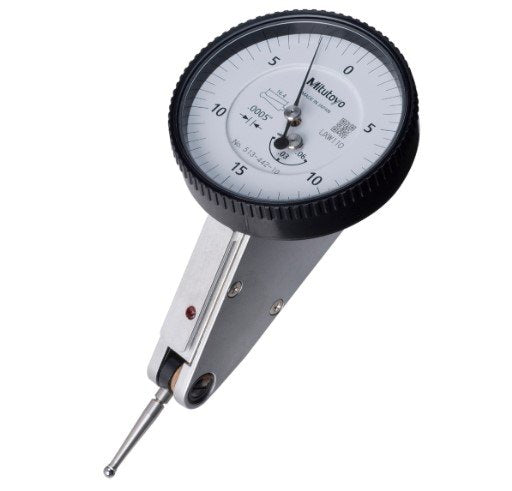

The Mitutoyo 513-442-10T Dial Test Indicator offers high precision with a graduation of 0.0005 inches and a measuring range of 0.06 inches. Its 20° tilted dial face ensures easy reading from the user's side. The indicator comes with a full set, including 4 mm and 9.52 mm stems and carbide contact points, making it versatile for various applications. The durable, glare-free, scratch-resistant crystal face provides clear readability. With an accuracy of ±0.0005 inches, it delivers reliable and consistent results.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-15-0
Graduation	0.0005 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.06 Inch
Repeatability	+/-0.0002 Inch
Series	513
Type	Dial Test Indicator
Weight	48 g

High Precision: Graduation of 0.0005 inches for accurate measurements.
Measuring Range: Measures small displacements within a range of 0.06 inches.
20° Tilted Dial Face: Provides easy reading and improved visibility during use.
Full Set: Includes 4 mm and 9.52 mm stems and carbide contact points for versatility.
Durable Design: Scratch-resistant, glare-free crystal face for long-lasting clarity.
Reliable Performance: Accuracy of ±0.0005 inches with a maximum measuring force of 0.2 N.

DOWNLOAD CATALOG
