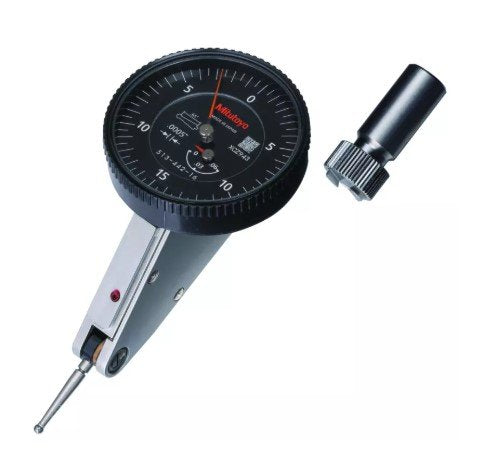

Mitutoyo 513-442-16T | Horizontal Dial Test Indicator, 20° Face | 0.0005 in grad., 0.06 in range, Full Set
Part Number : 513-442-16T
Part number 513-442-16T is a horizontal Series 513 dial test indicator from Mitutoyo that resolves 0.0005 inch across 0.06 inch, in the Full Set form; its 20° tilted face makes the dial easier to read. The 513-442-16T suits work in tight or recessed areas. The 513-442-16T is graduated in inches.
- Stem: 4 mm and 9.52 mm, 513-442-16T
- Dial 0-15-0; repeatability ±0.0002 inch (513-442-16T)
- Hysteresis of 0.0002 inch at 0.01 - 0.3 N measuring force on the 513-442-16T
- 513-442-16T: Full Set includes a swivel clamp and a holding bar
- Glare-free, scratch-resistant crystal and anti-magnetic characteristics, 513-442-16T
- Thread M 1.7 x 0.35 for the contact point (513-442-16T)
Free UAE shipping available
For pricing, please contact our experts.
