Mitutoyo 513-442-16T | Dial Test Indicator | Horizontal 20° Face | Series 513 | Full Set | Stem 4/9.52 mm | Graduation 0.0005 inch | Range 0.06 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-442-16T

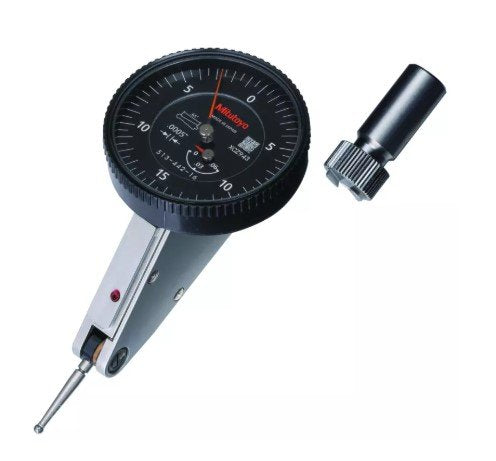

The Mitutoyo 513-442-16T Dial Test Indicator is engineered for precise measurements in confined or recessed areas. It features a 20° tilted horizontal dial face, enhancing visibility during use. With a graduation of 0.0005 inches and a measuring range of 0.06 inches, it ensures accurate detection of minute displacements. The full set includes multiple contact points, 4 mm and 9.52 mm stems, a swivel clamp, and a holding bar, providing versatility for various applications. Its durable construction includes a glare-free, scratch-resistant crystal face and anti-magnetic characteristics, ensuring longevity and reliable performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-15-0
Graduation	0.0005 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.06 Inch
Repeatability	+/-0.0002 Inch
Series	513
Type	Dial Indicator
Weight	48 g

High Precision: Graduation of 0.0005 inches for fine measurement accuracy.
Measurement Range: Covers small displacements up to 0.06 inches.
20° Tilted Dial Face: Improves visibility and readability during use.
Full Set Included: Comes with 4 mm and 9.52 mm stems, swivel clamp, contact points, and holding bar.
Durable Build: Scratch-resistant, glare-free crystal face ensures long-lasting clarity.
Anti-Magnetic Design: Ensures stable operation in various environments.

DOWNLOAD CATALOG
