Part Number : 513-443-10T

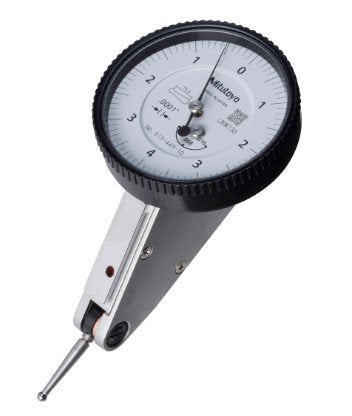

The Mitutoyo 513-443-10T Dial Test Indicator offers ultra-precise measurement with a graduation of 0.0001 inch and a range of 0.016 inch. Its 20° tilted horizontal dial face ensures better visibility and easy reading. The full set includes 4 mm and 9.52 mm stems, a swivel clamp, and a holding bar for versatile use. It is ideal for detecting very fine surface deviations. The crystal face is scratch-resistant and glare-free, ensuring long-lasting clarity. Anti-magnetic properties provide stable and accurate performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-4-0
Graduation	0.0001 Inch
Hysteresis	0.0001 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.016 Inch
Series	513
Type	Dial Test Indicator
Weight	48 g

Ultra-Fine Graduation: 0.0001 inch for extremely precise measurements.
Measurement Range: Measures small displacements up to 0.016 inch.
20° Tilted Dial Face: Enhances visibility and ease of reading.
Full Set Included: Comes with 4 mm and 9.52 mm stems, swivel clamp, and holding bar.
Durable Build: Glare-free, scratch-resistant crystal face for clear readability.
Anti-Magnetic Design: Ensures reliable operation in sensitive environments.
