Mitutoyo 513-444-10A | Dial Test Indicator | Horizontal 20° Face | Series 513 | Plus Set | Stem 4/8 mm | Graduation 0.01 mm | Range 1.6 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-444-10A

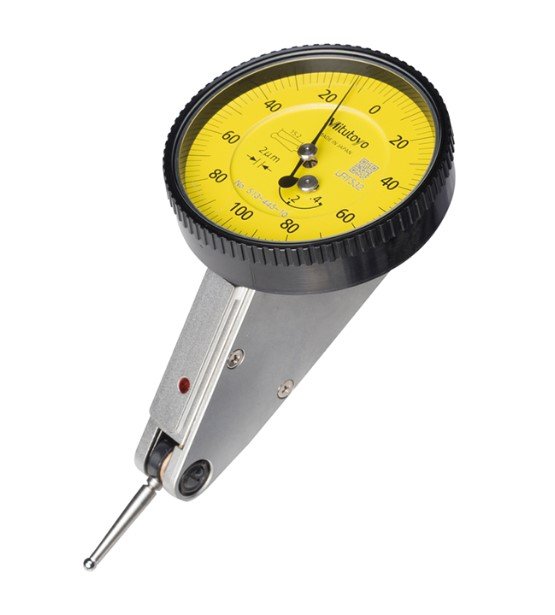

The Mitutoyo 513-444-10A Dial Test Indicator is a versatile and durable instrument designed for general and precision measurement tasks. It features a horizontal 20° face, making it easy to read in tight or angled spaces. As part of the Series 513 Plus Set, it includes extra accessories for greater adaptability in various setups. The indicator comes with dual stem sizes (4 mm and 8 mm), offering flexible mounting options. With a graduation of 0.01 mm, it delivers clear and consistent readings. Its extended 1.6 mm measuring range makes it suitable for a wider range of applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Graduation	0.01 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measuring Force	0.01 - 0.3 N
Measuring range	16 µm
Range	1.6 mm
Repeatability	3 µm
Series	513
Type	Dial Test Indicator
Weight	48 g

Horizontal 20° Face: Designed for easy readability in confined or angled areas.
Graduation: 0.01 mm graduation provides clear and consistent measurement resolution.
Measuring Range: Extended 1.6 mm range for broader application versatility.
Dual Stem Sizes: Includes 4 mm and 8 mm stems for flexible and convenient mounting.
Plus Set: Supplied with additional accessories for enhanced functionality and ease of use.
Series 513: Part of Mitutoyo’s high-quality and reliable indicator product line.
