Part Number : 513-445-10A

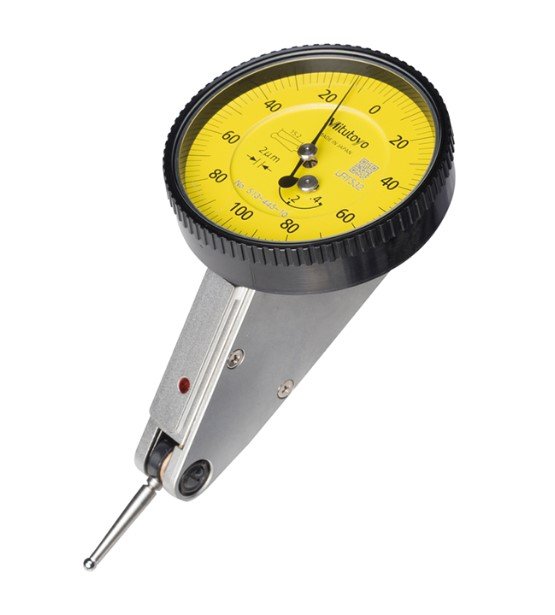

The Mitutoyo 513-445-10A Dial Test Indicator is a high-precision tool designed for accurate measurement in detailed inspection work. Featuring a horizontal 20° face, it allows for easy reading even in confined or angled spaces. Part of the advanced Series 513 Plus Set, it comes with additional accessories for greater versatility. The dual stem option (4 mm and 8 mm) offers flexible mounting compatibility. With a fine graduation of 0.002 mm, it ensures highly accurate and repeatable results. Its 0.4 mm measuring range makes it ideal for delicate, high-precision tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Graduation	0.002 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measuring Force	0.01 - 0.3 N
Measuring range	6 µm
Range	0.4 mm
Repeatability	1 µm
Series	513
Type	Dial Test Indicator
Weight	48 g

Horizontal 20° Face: Provides excellent readability in tight or angled positions.
High Precision: Fine 0.002 mm graduation for highly accurate measurements.
Dual Stem Size: Includes both 4 mm and 8 mm stems for flexible mounting options.
Measuring Range: Compact 0.4 mm range suited for fine, detailed work.
Plus Set: Comes with additional accessories for enhanced usability and setup.
Series 513: Part of Mitutoyo’s trusted and performance-oriented dial indicator line.

DOWNLOAD CATALOG
