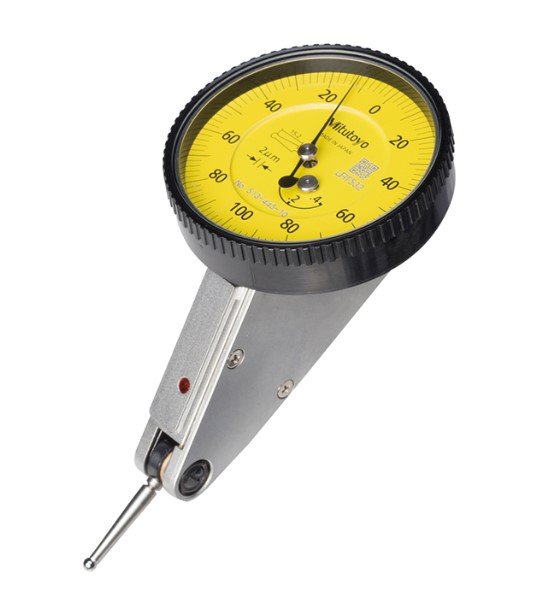

Mitutoyo 513-445-10E | Horizontal Dial Test Indicator, 20° Face | 0.002 mm grad., 0.4 mm range, Basic Set
Part Number : 513-445-10E
Part number 513-445-10E is a horizontal Series 513 dial test indicator from Mitutoyo that resolves 0.002 mm across 0.4 mm, in the Basic Set form; its 20° tilted face makes the dial easier to read. The 513-445-10E suits work in tight or recessed areas and inspection work. The 513-445-10E is graduated in metric units.
- Stem: 8 mm, 513-445-10E
- Dial 0-100-0; repeatability 1 µm (513-445-10E)
- Hysteresis of 4 µm at 0.01 - 0.3 N measuring force on the 513-445-10E
- 513-445-10E: M 1.7 x 0.35 contact point thread, tip 103011
- Main unit mass 48 g, 513-445-10E
