Part Number : 513-445-10E

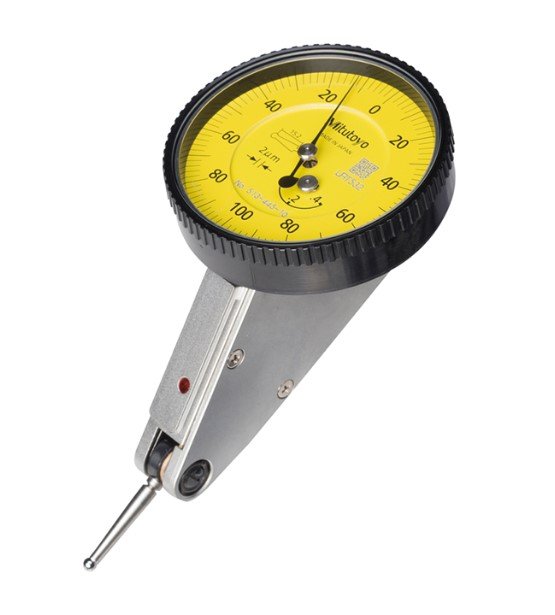

The Mitutoyo 513-445-10E Dial Test Indicator is a precision measuring instrument designed for high-accuracy applications. Featuring a horizontal 20° face, it offers clear visibility and ease of use in tight spaces. Part of the trusted Series 513, this basic set is ideal for general inspection work. It has a stem diameter of 8 mm, making it compatible with a wide range of holders and fixtures. With a fine graduation of 0.002 mm, it ensures highly detailed readings. The indicator covers a measuring range of 0.4 mm, suitable for delicate measurement tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-100-0
Graduation	0.002 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measuring Force	0.01 - 0.3 N
Measuring range	6 µm
Range	0.4 mm
Repeatability	1 µm
Series	513
Stylus	Tip No: 103011
Type	Dial Test Indicator
Weight	48 g

Horizontal 20° Face: Designed for optimal readability in restricted or angled spaces.
High Precision: Fine graduation of 0.002 mm for highly accurate measurements.
Measuring Range: Covers a 0.4 mm range, ideal for fine measurement work.
Stem Diameter: Standard 8 mm stem ensures compatibility with most indicator holders.
Durable Build: Engineered for long-lasting performance in demanding environments.
Series 513: Part of Mitutoyo's reliable and well-known dial test indicator lineup.
