Mitutoyo 513-445-10T | Dial Test Indicator | Horizontal 20° Face | Series 513 | Full Set | Swivel Clamp | Stem 4/8 mm | Graduation 0.002 mm | Range 0.4 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-445-10T

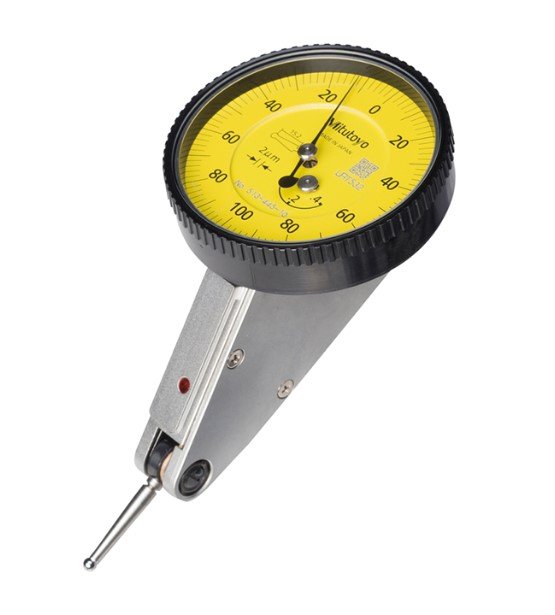

The Mitutoyo 513-445-10T Dial Test Indicator is a premium precision tool designed for high-accuracy measurement tasks. It features a horizontal 20° face for easy readability in tight or angled positions. As part of the Series 513 Full Set, it includes a comprehensive range of accessories for maximum versatility. The indicator is equipped with both 4 mm and 8 mm stems, allowing flexible mounting options. With a fine graduation of 0.002 mm, it delivers highly precise and reliable readings. A swivel clamp is also included, providing added convenience and positioning flexibility during measurements.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-100-0
Graduation	0.002 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measuring Force	0.01 - 0.3 N
Measuring range	6 µm
Range	0.4 mm
Repeatability	1 µm
Series	513
Stylus	Tip No: 103011
Type	Dial Gauge
Weight	48 g

Horizontal 20° Face: Ensures clear visibility in confined or angled spaces.
High Precision: Fine 0.002 mm graduation for extremely accurate measurements.
Measuring Range: 0.4 mm range, ideal for detailed and sensitive measurement tasks.
Dual Stem Sizes: Includes both 4 mm and 8 mm stems for versatile mounting.
Swivel Clamp Included: Allows flexible positioning for easier setup and use.
Full Set: Comes with a complete accessory set for enhanced functionality and convenience.

DOWNLOAD CATALOG
