Mitutoyo 513-446-10T | Dial Test Indicator | Horizontal 20° Face | Series 513 | Full Set | Swivel Clamp | Stem 4/9.52 mm | Graduation 0.0005 inch | Range 0.06 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-446-10T

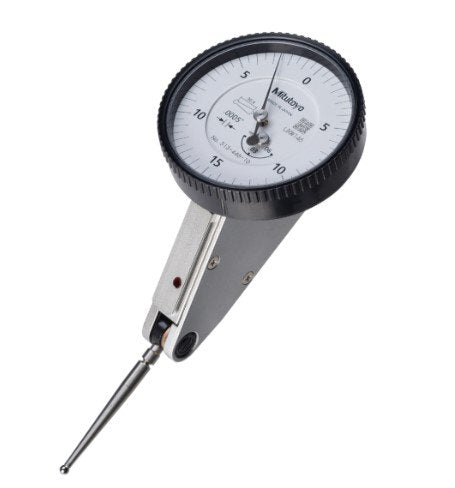

The Mitutoyo 513-446-10T Dial Test Indicator is designed for precise measurements in narrow or recessed areas. It features a 20° tilted horizontal dial face, enhancing visibility and ease of reading. With a measuring range of 0.06 inches and a graduation of 0.0005 inches, it offers high-resolution measurements. The full set includes multiple contact points, 4 mm and 9.52 mm stems, a swivel clamp, and a holding bar, providing versatility for various applications. Its durable construction includes a glare-free, scratch-resistant crystal face and anti-magnetic characteristics, ensuring longevity and reliable performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-15-0
Graduation	0.0005 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.06 Inch
Repeatability	+/-0.0002 Inch
Series	513
Type	Dial Test Indicator
Weight	48 g

High Resolution: Offers 0.0005 inch graduation for precise measurements.
Measurement Range: Covers up to 0.06 inches for fine displacement detection.
20° Tilted Dial Face: Improves readability from the side during use.
Full Set: Includes 4 mm and 9.52 mm stems, swivel clamp, contact points, and holding bar.
Durable and Clear: Scratch-resistant, glare-free crystal ensures long-lasting visibility.
Anti-Magnetic Build: Provides stable and accurate performance in sensitive environments.

DOWNLOAD CATALOG

Mitutoyo 513-446-10T | Dial Test Indicator | Horizontal 20° Face | Series 513 | Full Set | Swivel Clamp | Stem 4/9.52 mm | Graduation 0.0005 inch | Range 0.06 inch

Mitutoyo 513-406-10T | Dial Test Indicator | Horizontal Type | Series 513 | Full Set | Swivel Clamp | Stem 4/9.52 mm | Graduation 0.01 mm or 0.0005 inch | Range 0.7 mm or 0.03 inch

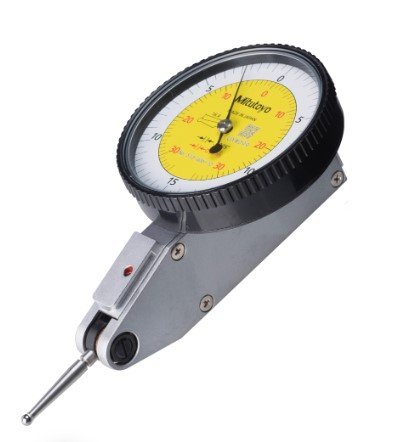

Mitutoyo 513-406-10E | Dial Test Indicator | Horizontal Type | Series 513 | Basic Set | Stem 9.52 mm | Graduation 0.01 mm or 0.0005 inch | Range 0.7 mm or 0.03 inch

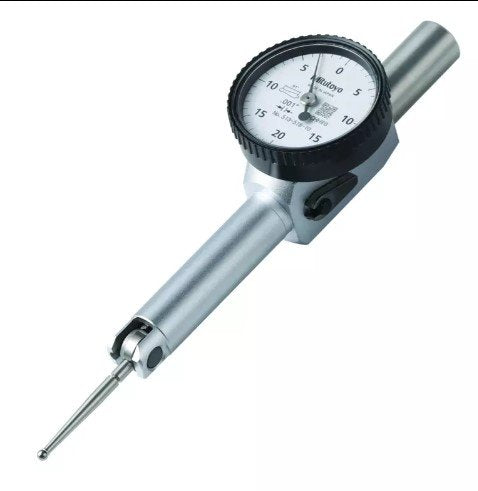

Mitutoyo 513-518-10T | Dial Test Indicator | Pocket Type | Series 513 | Full Set | Swivel Clamp | Stem 4/9.52 mm | Graduation 0.001 inch | Range 0.04 inch

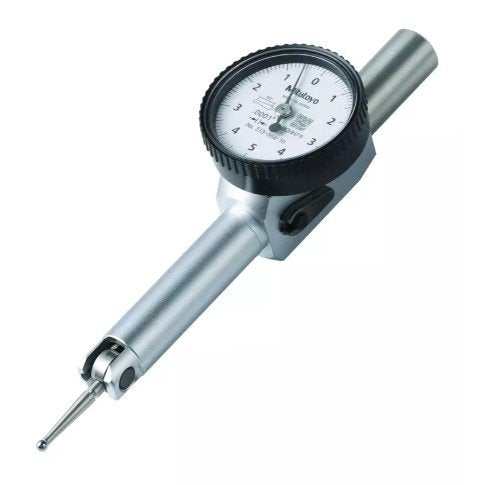

Mitutoyo 513-504-10T | Dial Test Indicator | Pocket Type | Series 513 | Full Set | Swivel Clamp | Stem 4/9.52 mm | Graduation 0.0001 inch | Range 0.01 inch

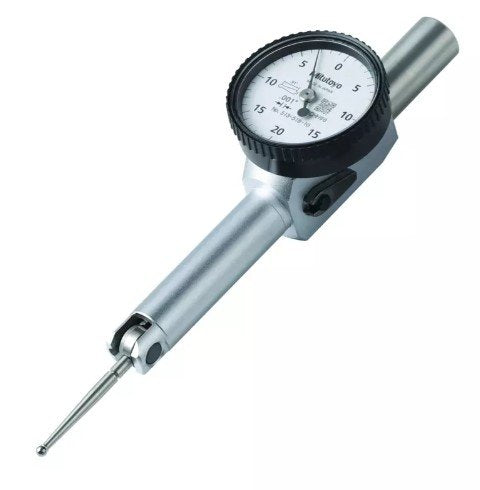

Mitutoyo 513-518-10E | Dial Test Indicator | Pocket Type | Series 513 | Basic Set | Stem 9.52 mm | Graduation 0.001 inch | Range 0.04 inch

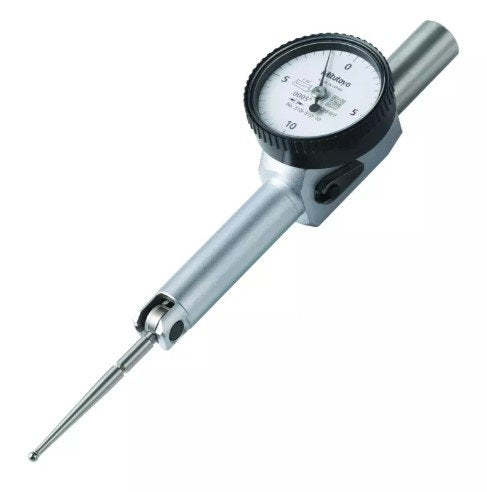

Mitutoyo 513-512-10E | Dial Test Indicator | Pocket Type | Series 513 | Basic Set | Stem 9.52 mm | Graduation 0.0005 inch | Range 0.02 inch

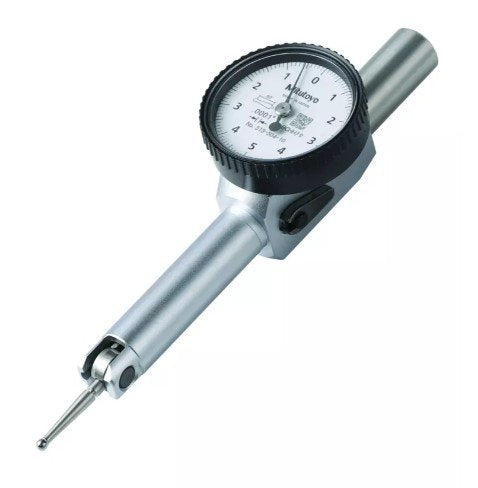

Mitutoyo 513-504-10E | Dial Test Indicator | Pocket Type | Series 513 | Basic Set | Stem 9.52 mm | Graduation 0.0001 inch | Range 0.01 inch

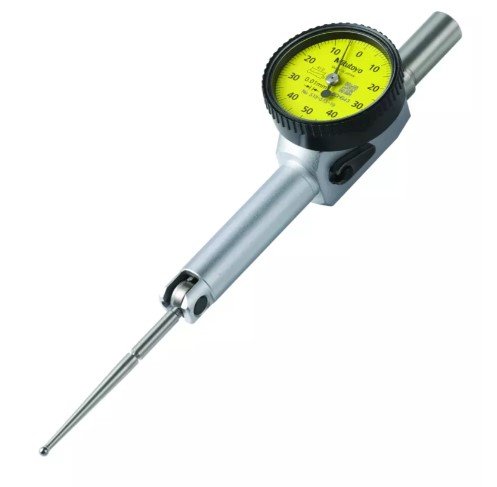

Mitutoyo 513-515-10T | Dial Test Indicator | Pocket Type | Series 513 | Full Set | Swivel Clamp | Stem 4/8 mm | Graduation 0.01 mm | Range 1 mm
