Part Number : 513-446-16T

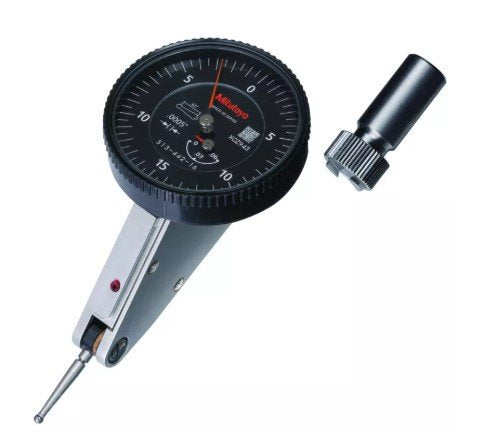

The Mitutoyo 513-446-16T Dial Test Indicator is engineered for precise measurements in narrow or recessed areas. With a 20° tilted horizontal dial face, it offers enhanced visibility and ease of reading. The indicator features a measuring range of 0.06 inches and a graduation of 0.0005 inches, ensuring high-resolution measurements. The full set includes multiple contact points, 4 mm and 9.52 mm stems, a swivel clamp, and a holding bar, providing versatility for various applications. Its durable construction includes a glare-free, scratch-resistant crystal face and anti-magnetic characteristics, ensuring longevity and reliable performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-15-0
Graduation	0.0005 Inch
Hysteresis	0.0002 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.06 Inch
Repeatability	+/-0.0002 Inch
Series	513
Type	Dial Indicator
Weight	48 g

High Precision: Graduation of 0.0005 inch for accurate and detailed measurements.
Measurement Range: Capable of measuring up to 0.06 inch of displacement.
20° Tilted Dial Face: Enhances visibility and ease of reading from the user’s side.
Complete Full Set: Includes 4 mm and 9.52 mm stems, swivel clamp, contact points, and holding bar.
Durable Design: Features a scratch-resistant, glare-free crystal face for long-term clarity.
Anti-Magnetic Construction: Stable and reliable performance in sensitive environments.
