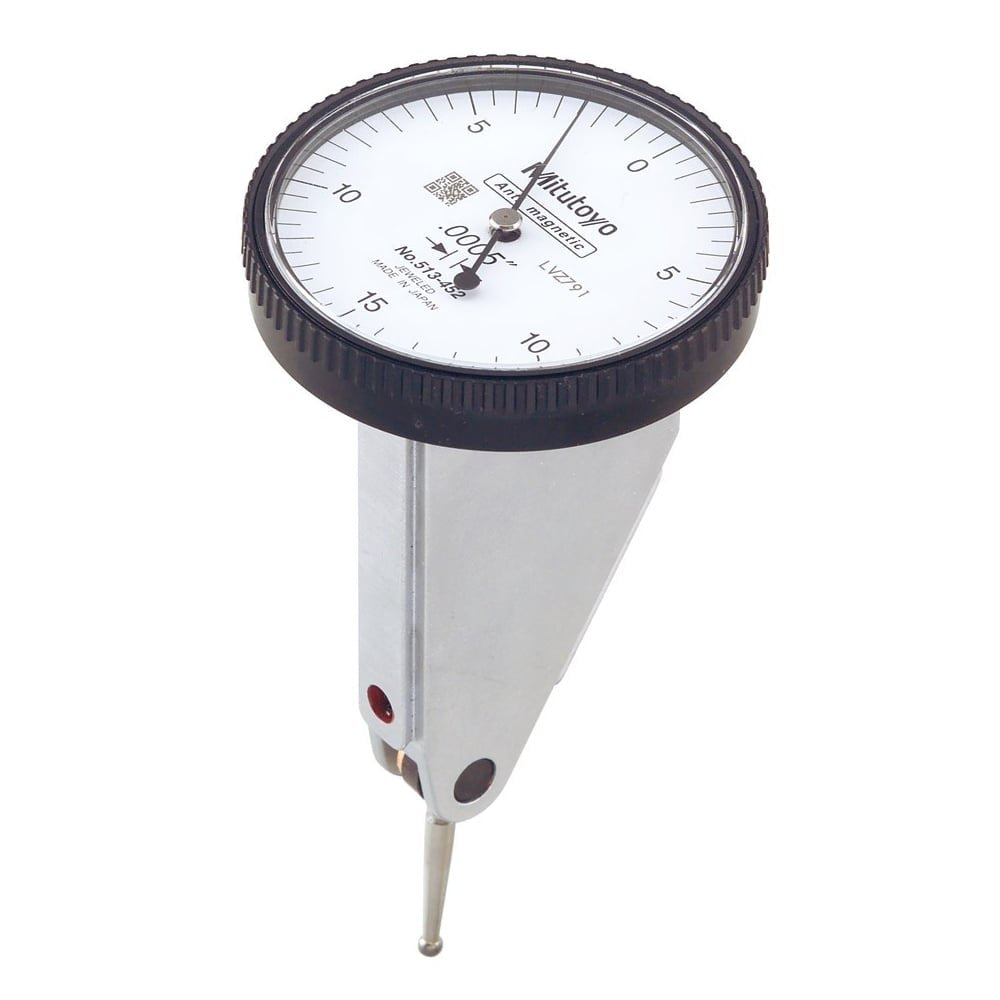

Mitutoyo 513-452T Vertical Style Lever Indicator, Range 0.03", Graduation .0005", Full Set
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
- Specifications
- Features
- Downloads
| Accuracy | +/-.0005 inch |
| Brand | Mitutoyo |
| Data Output | No |
| Dial Reading | 0-15-0 |
| Display Type | Non-digital |
| Graduations | .0005 inch |
| Measuring Force | 0.3N or less |
| Measuring Units | Inch |
| Range | .03 inch |
| SKU | 513-452T |
| Type | Lever |
The vertical face indicator is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck
The parallel face indicator is convenient to use when the application calls for stylus movement in a plane parallel to that of the dial face
