Mitutoyo 513-463-10E | Dial Test Indicator | Horizontal | Compact | Series 513 | Basic Set | Stem 9.52 mm | Graduation 0.0001 inch | Range 0.008 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-463-10E

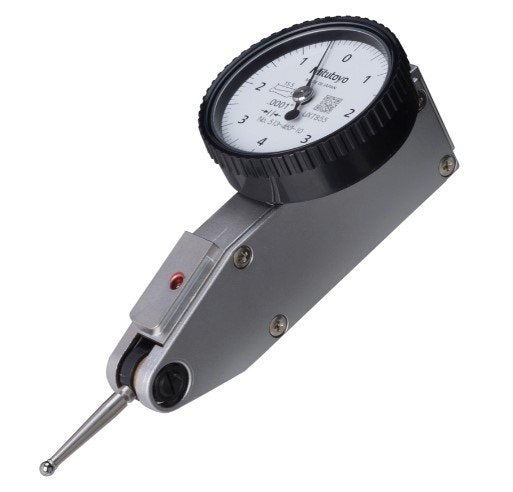

The Mitutoyo 513-463-10E is a compact horizontal dial test indicator designed for precise measurement of small displacements. It features a 9.52 mm stem and offers a graduation of 0.0001 inches, ensuring high-resolution readings. With a measuring range of 0.008 inches, it is suitable for detecting minute variations in surface profiles. The indicator boasts an accuracy of ±0.0001 inches, providing reliable and consistent results. Equipped with a carbide contact point, it offers durability and resistance to wear. The indicator is part of Mitutoyo's Series 513, known for its precision and quality in measurement instruments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-4-0
Graduation	0.0001 Inch
Hysteresis	0.0001 Inch
Inch-Metric	Inch
Measuring Force	0.01 - 0.3 N
Range	0.008 Inch
Repeatability	+/-0.00004 Inch
Series	513
Type	Dial Test Indicator
Weight	55 g

Graduation: 0.0001 inches, providing high-resolution measurements.
Range: 0.008 inches, suitable for precise displacement measurements.
Dial Reading: 0–4–0, facilitating easy interpretation of measurements.
Accuracy: ±0.0001 inches, ensuring precise measurements.
Measuring Force: 0.3 N or less, minimizing impact on the measured surface.
Contact Point: Carbide, offering durability and resistance to wear.

DOWNLOAD CATALOG
