Mitutoyo 513-472-10E | Dial Test Indicator | Horizontal | Series 513 | Basic Set | Stem 9.52 mm | Graduation 0.0005 inch | Range 0.03 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 513-472-10E

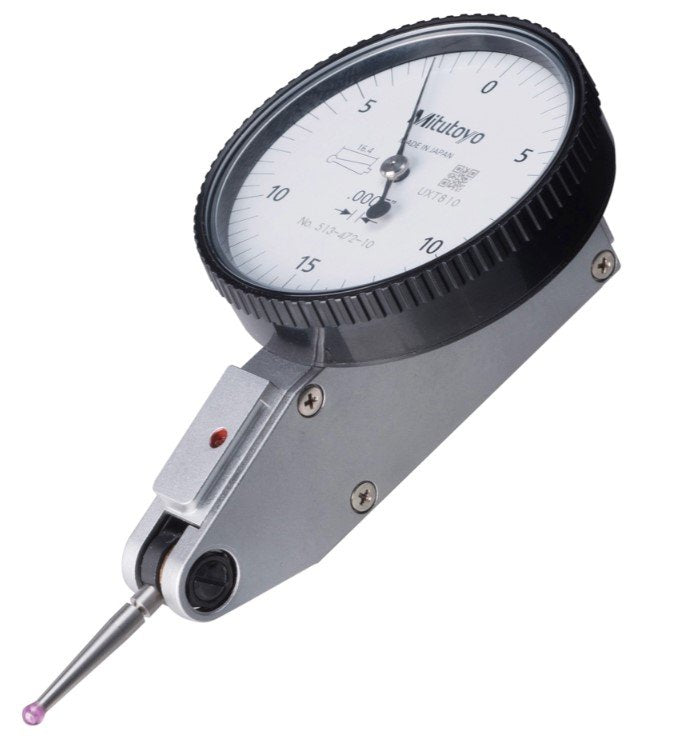

The Mitutoyo 513-472-10E is a horizontal dial test indicator from Series 513, designed for precision measurement in imperial units. It comes as a Basic Set, perfect for a variety of measurement tasks requiring high accuracy. With a 0.03-inch measuring range and 0.0005-inch graduation, it provides exceptional resolution for fine-tolerance inspections. The 9.52 mm stem ensures compatibility with a wide range of holders and fixtures. Ideal for tool calibration, machine setup, and high-precision measurement in industrial environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-15-0
Digital/Analog	Analog
Graduation	0.0005 Inch
Hysteresis	0.0002
Inch-Metric	Inch
Mass (main unit)	58 g
Measuring Force	0.01 - 0.3 N
Range	0.03 Inch
Repeatability	+/-0.0002 Inch
Series	513
Set Type	Basic Set
Size	Stem Size : 9.52 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.0005 inches, providing high-resolution measurements.
Range: 0.03 inches, suitable for precise displacement measurements.
Dial Reading: 0–15–0, facilitating easy interpretation of measurements.
Measuring Force: 0.3 N or less, ensuring minimal impact on the measured surface.
Contact Point: Ruby, offering durability and resistance to wear.
Included Accessories: Comes with a 9.52 mm plain stem, providing flexibility for various setups.
