Part Number : 513-475-10E

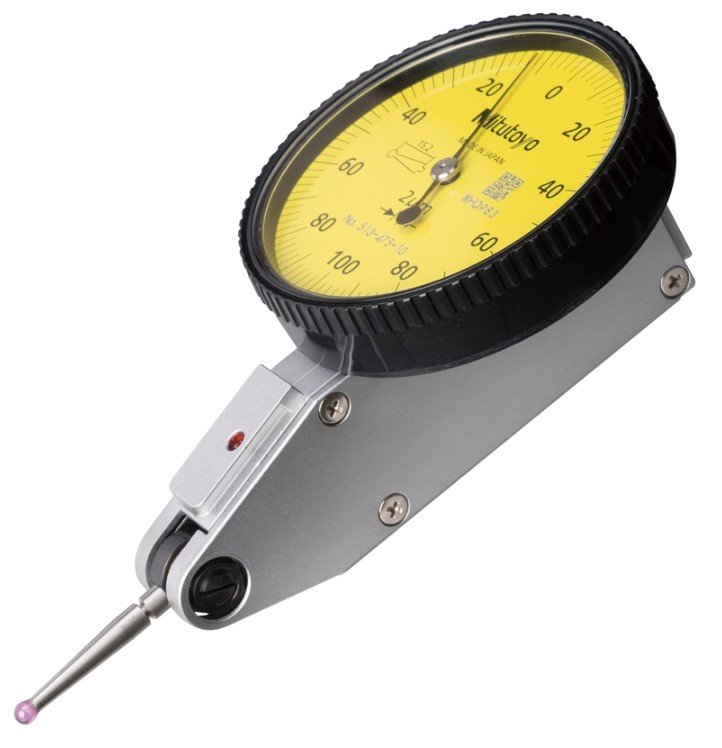

The Mitutoyo 513-475-10E is a horizontal dial test indicator from Series 513, crafted for precision measurement tasks. It features a ruby stylus tip, ensuring smooth, low-friction contact even on delicate surfaces. With a 0.2 mm measuring range and 0.002 mm graduation, it delivers reliable and precise readings for detailed inspections. Equipped with a standard 8 mm stem, it integrates easily with a variety of indicator holders. Perfect for precision alignment, small parts inspection, and surface profiling applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-100-0
Digital/Analog	Analog
Graduation	0.002 mm
Hysteresis	2 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring Force	0.01 - 0.3 N
Measuring range	3 µm
Range	0.2 mm
Repeatability	1 µm
Series	513
Set Type	Basic Set
Size	Stem Size : 8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.002 mm, providing high-resolution measurements.
Range: 0.2 mm, suitable for precise displacement measurements.
Dial Reading: 0–100–0, facilitating easy interpretation of measurements.
Measuring Force: 0.3 N or less, ensuring minimal impact on the measured surface.
Contact Point: Ruby, offering durability and resistance to wear.
Included Accessories: Comes with an 8 mm plain stem, providing flexibility for various setups.
