Part Number : 513-478-10E

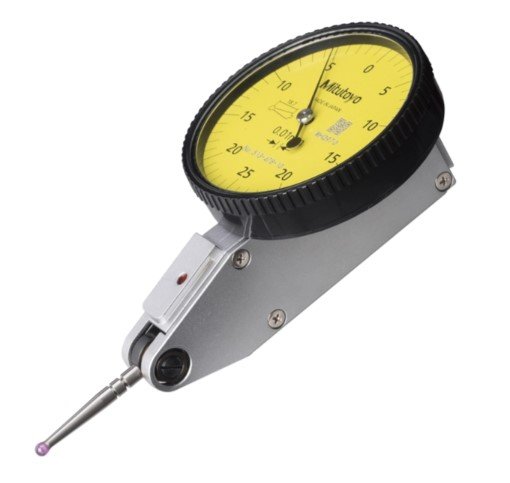

The Mitutoyo 513-478-10E is a high-precision horizontal dial test indicator from Series 513. It features a robust ruby stylus for increased wear resistance and smooth contact. With a measuring range of 0.5 mm and 0.01 mm graduation, it ensures accurate readings. Its 8 mm stem allows easy mounting in various setups. Delivered as a basic set, it's ideal for inspection, alignment, and surface measurement tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-25-0
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	3 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring Force	0.01 - 0.3 N
Measuring range	5 µm
Range	0.5 mm
Repeatability	3 µm
Series	513
Type	Dial Test Indicator
Type	Horizontal type

Graduation: 0.01 mm, providing high-resolution measurements.
Range: 0.5 mm, suitable for precise displacement measurements.
Dial Reading: 0–25–0, facilitating easy interpretation of measurements.
Measuring Force: 0.3 N or less, ensuring minimal impact on the measured surface.
Carbide Contact Point: Durable and anti-magnetic, enhancing longevity and accuracy.
Included Accessories: Comes with an 8 mm plain stem and a certificate for quality assurance.
